Removal [02/2019 - 10/2019]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [11/2018 - ]

  2. REMOVE DECK BOARD ASSEMBLY (for HV Model)

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 2 REAR FLOOR BOARD (for HV Model)

    Refer to PROCEDURE - Step 3

  4. REMOVE BATTERY HOLE COVER (for HV Model)

    Refer to PROCEDURE - Step 4

  5. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    1. for A25A-FXS:

      Refer to PROCEDURE - Step 5

    2. for A25A-FKS:

      Refer to PROCEDURE - Step 2

      WARNING:
      • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
      • If the airbag deploys for any reason, it may cause a serious accident.
      GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [02/2019 - 10/2019]

  6. REMOVE REAR DOOR INSIDE HANDLE BEZEL LH

    Refer to PROCEDURE - Step 6

  7. REMOVE DOOR ASSIST GRIP COVER LH

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 8

  9. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 11

  10. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH

    Refer to PROCEDURE - Step 13

  11. REMOVE REAR DOOR REAR BELT SEAL LH

    Refer to PROCEDURE - Step 15

  12. REMOVE REAR DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 17

  13. REMOVE REAR DOOR FRAME GARNISH LH

    Refer to PROCEDURE - Step 18

  14. REMOVE REAR DOOR GLASS RUN LH

    Refer to PROCEDURE - Step 21

  15. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 20

  16. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 24

  17. REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 25

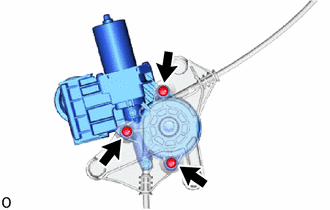

  18. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
    1. Using a T25 "TORX" socket wrench, remove the 3 "TORX" screws and power window regulator motor assembly LH from the rear door window regulator sub-assembly LH.
      GTY904558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
