Components [11/2018 - ]

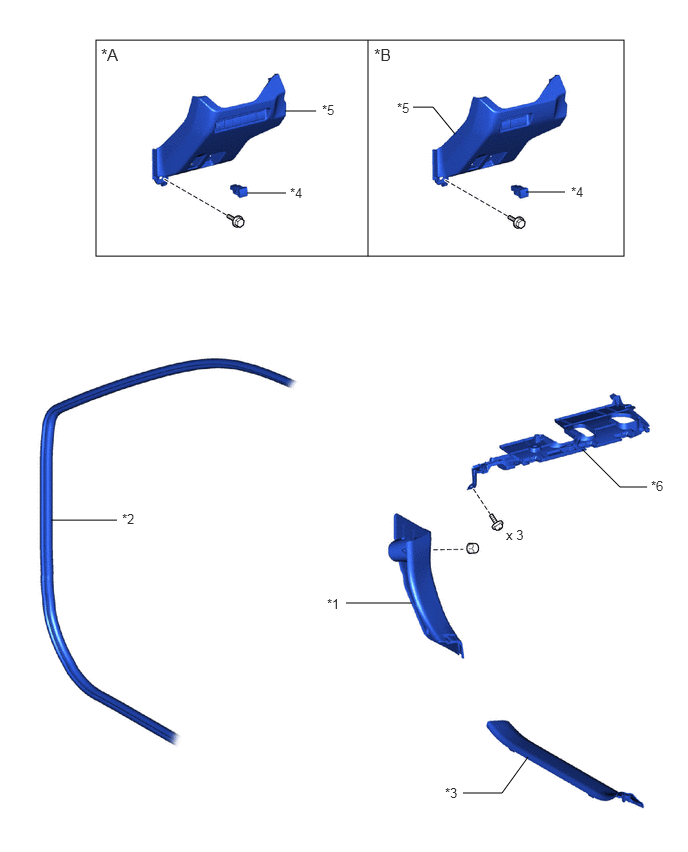

Fig 1: Fuel Lid Opener Switch Replacement Components
GTY873698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for 6 Switch Type *B for 3 Switch Type
*1 COWL SIDE TRIM BOARD LH *2 FRONT DOOR OPENING TRIM WEATHERSTRIP LH
*3 FRONT DOOR SCUFF PLATE LH *4 FUEL LID OPENER SWITCH
*5 FUSE BOX OPENING COVER *6 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
