Components [08/2020 - 10/2023]
| *A | w/ Tonneau Cover | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | REAR FLOOR FINISH PLATE |
| *3 | REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE | *4 | REAR NO. 3 FLOOR BOARD |
| *5 | TONNEAU COVER ASSEMBLY | - | - |

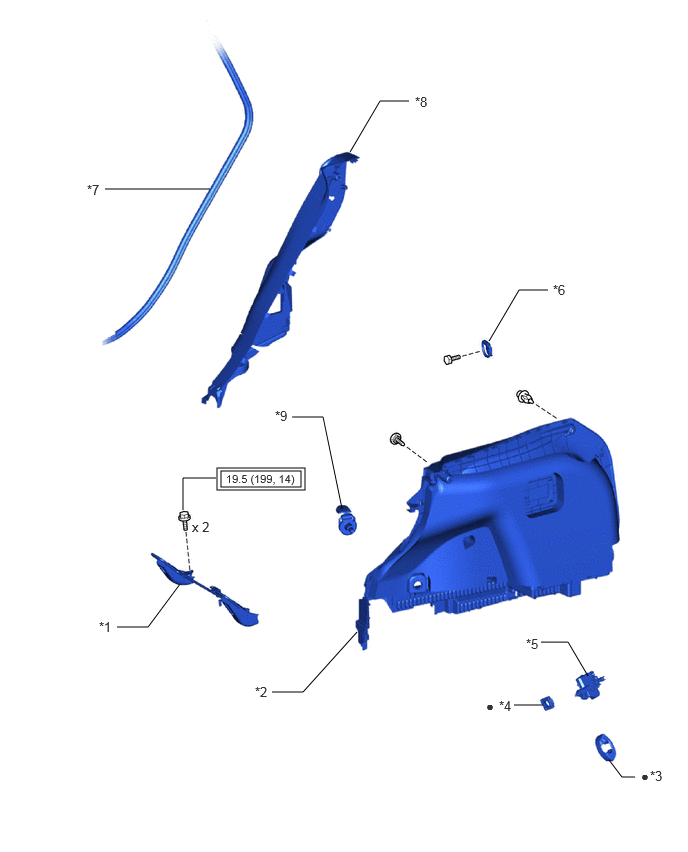

Fig 2: Fuel Lid Opener Motor Assembly Replacement Components With Torque Specifications [08/2020 - 10/2023] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH | *2 | DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 | FUEL FILLER OPENING LID LOCK COVER | *4 | FUEL FILLER OPENING LID LOCK RETAINER |
| *5 | FUEL LID LOCK WITH MOTOR ASSEMBLY | *6 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
| *7 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *8 | REAR SEAT SIDE GARNISH LH |
| *9 | TETHER ANCHOR BRACKET SET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
