Components [02/2019 - 08/2020]

Fig 1: Fuel Lid Opener Motor Assembly Replacement Components [02/2019 - 08/2020] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Tonneau Cover	-	-
*1	DECK BOARD ASSEMBLY	*2	REAR FLOOR FINISH PLATE
*3	REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE	*4	REAR NO. 3 FLOOR BOARD
*5	TONNEAU COVER ASSEMBLY	-	-

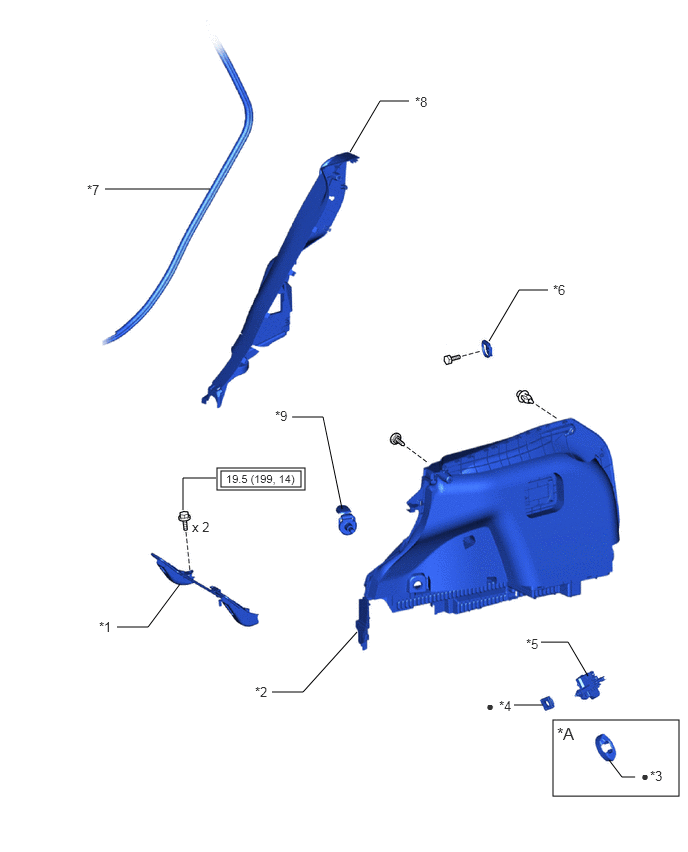

Fig 2: Fuel Lid Opener Motor Assembly Replacement Components With Torque Specifications [02/2019 - 08/2020] (2 Of 2)

Callout	Description	Callout	Description
*A	w/ Canister Pump Module	-	-
*1	CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH	*2	DECK TRIM SIDE PANEL ASSEMBLY LH
*3	FUEL FILLER OPENING LID LOCK COVER	*4	FUEL FILLER OPENING LID LOCK RETAINER
*5	FUEL LID LOCK WITH MOTOR ASSEMBLY	*6	LUGGAGE HOLD BELT STRIKER ASSEMBLY
*7	REAR DOOR OPENING TRIM WEATHERSTRIP LH	*8	REAR SEAT SIDE GARNISH LH
*9	TETHER ANCHOR BRACKET SET	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	•	Non-reusable part
