(Door / Hatch) - Service Information (4 Of 4)
>>
Back Door Support
>>
Components [11/2018 - ]
Components [11/2018 - ]

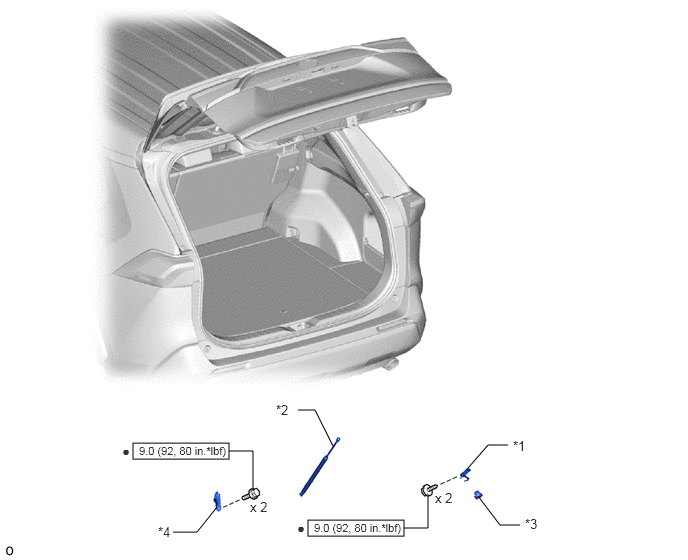

Fig 1: Back Door Support Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
BACK DOOR LOWER DAMPER STAY BRACKET LH
*2
BACK DOOR STAY ASSEMBLY LH
*3
BACK DOOR STAY STOPPER
*4
BACK DOOR UPPER DAMPER STAY BRACKET LH
N.m (kgf/cm, ft.lbf): Specified torque
•
Non-reusable part
