Components [08/2020 - ]

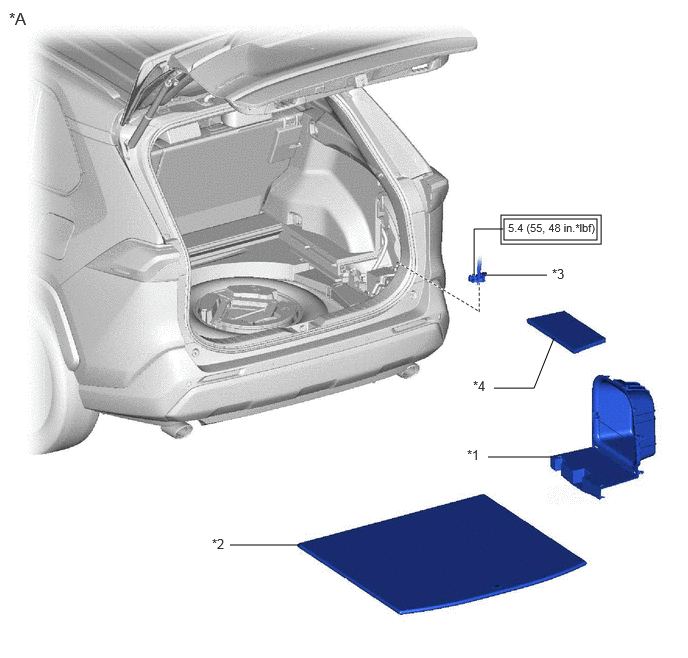

| Callout | Description | Callout | Description |
| *A | for HV Model | - | - |
| *1 | BATTERY HOLE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| *3 | DECK BOARD ASSEMBLY | *4 | REAR NO. 2 FLOOR BOARD |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

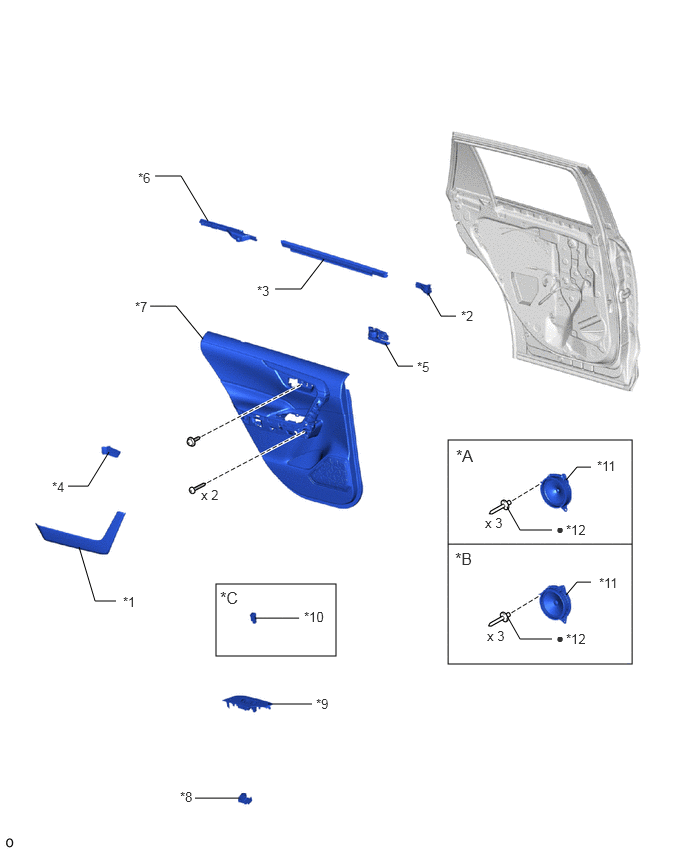

| *A | w/ Woofer | *B | w/o Woofer |
| *C | w/ Seat Heater System | - | - |
| *1 | DOOR ASSIST GRIP COVER LH | *2 | REAR DOOR FRONT BELT SEAL LH |
| *3 | REAR DOOR INNER GLASS WEATHERSTRIP LH | *4 | REAR DOOR INSIDE HANDLE BEZEL LH |
| *5 | REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH | *6 | REAR DOOR REAR BELT SEAL LH |
| *7 | REAR DOOR TRIM BOARD SUB-ASSEMBLY LH | *8 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY |
| *9 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL | *10 | REAR SEAT HEATER SWITCH |
| *11 | REAR SPEAKER ASSEMBLY | *12 | RIVET |
| • | Non-reusable part | - | - |

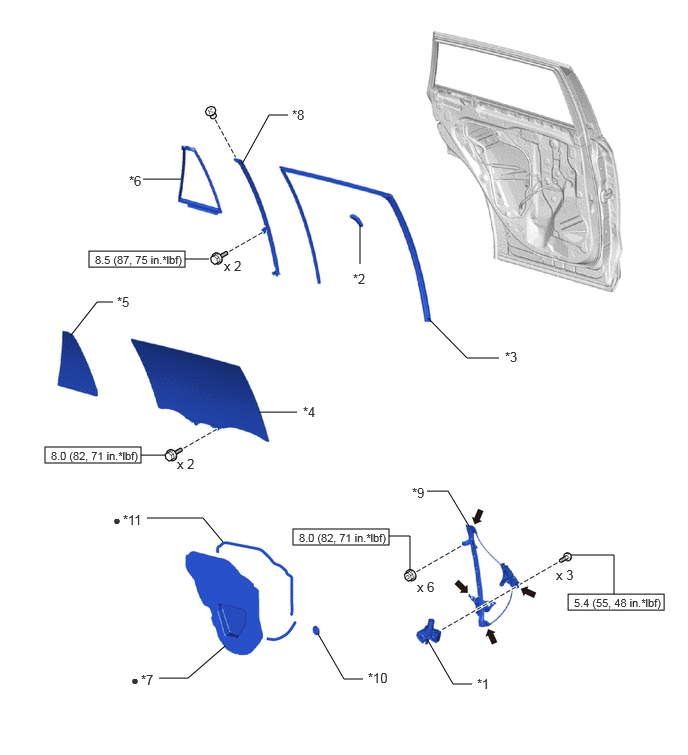

| Callout | Description | Callout | Description |
| *1 | POWER WINDOW REGULATOR MOTOR ASSEMBLY LH | *2 | REAR DOOR FRAME GARNISH LH |
| *3 | REAR DOOR GLASS RUN LH | *4 | REAR DOOR GLASS SUB-ASSEMBLY LH |
| *5 | REAR DOOR QUARTER WINDOW GLASS LH | *6 | REAR DOOR QUARTER WINDOW WEATHERSTRIP LH |
| *7 | REAR DOOR SERVICE HOLE COVER LH | *8 | REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH |
| *9 | REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY LH | *10 | HOLE PLUG |
| *11 | BUTYL TAPE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

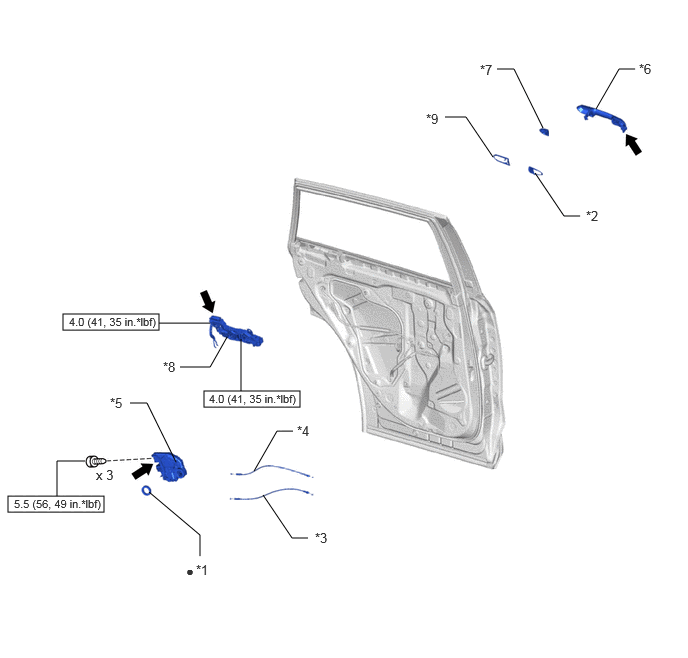

| Callout | Description | Callout | Description |
| *1 | DOOR LOCK WIRING HARNESS SEAL | *2 | REAR DOOR FRONT OUTSIDE HANDLE PAD |
| *3 | REAR DOOR INSIDE LOCKING CABLE ASSEMBLY | *4 | REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY |
| *5 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | REAR DOOR OUTSIDE HANDLE ASSEMBLY LH |
| *7 | REAR DOOR OUTSIDE HANDLE COVER LH | *8 | REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH |
| *9 | REAR DOOR REAR OUTSIDE HANDLE PAD | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

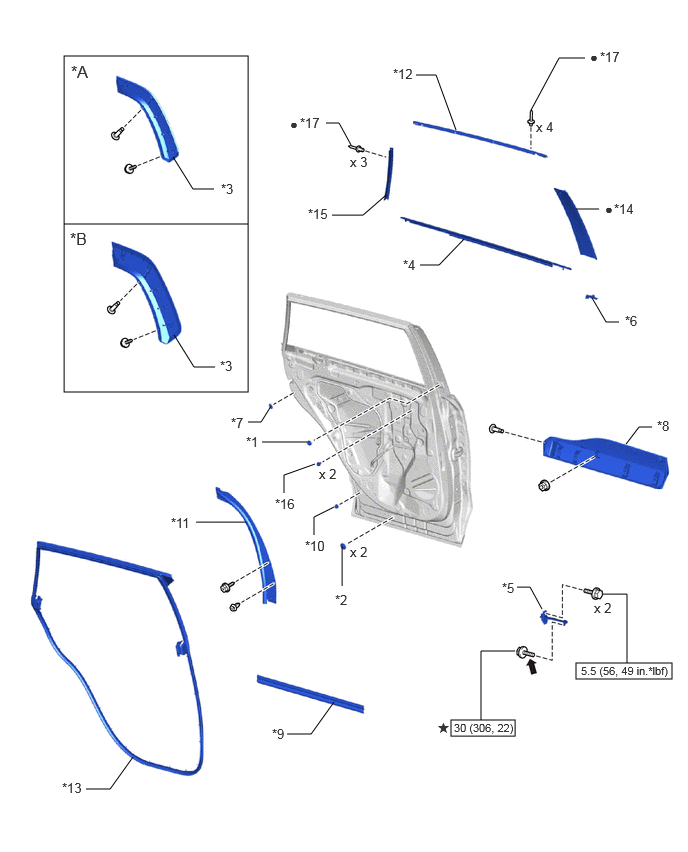

| Callout | Description | Callout | Description |
| *A | except Off Road Package | *B | for Off Road Package |
| *1 | DOOR WINDOW FRAME MOULDING CLIP | *2 | HOLE PLUG |
| *3 | OUTSIDE MOULDING SET LH | *4 | REAR DOOR BELT MOULDING LH |
| *5 | REAR DOOR CHECK ASSEMBLY LH | *6 | REAR DOOR FRONT OUTSIDE SEAL LH |
| *7 | REAR DOOR LOCK CHILD PROTECTION COVER LH | *8 | REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH |
| *9 | REAR DOOR NO. 5 WEATHERSTRIP LH | *10 | REAR DOOR PANEL CUSHION |
| *11 | REAR DOOR PANEL PROTECTOR LH | *12 | REAR DOOR UPPER WINDOW FRAME MOULDING LH |
| *13 | REAR DOOR WEATHERSTRIP LH | *14 | REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE) |
| *15 | REAR DOOR WINDOW FRAME MOULDING LH (REAR PILLAR SIDE) | *16 | SCREW GROMMET |
| *17 | RIVET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | * | Precoated part |
