(Door / Hatch) - Service Information (2 Of 4)
>>
Front Door Opening Trim Weatherstrip
>>
Components [11/2018 - ]
Components [11/2018 - ]

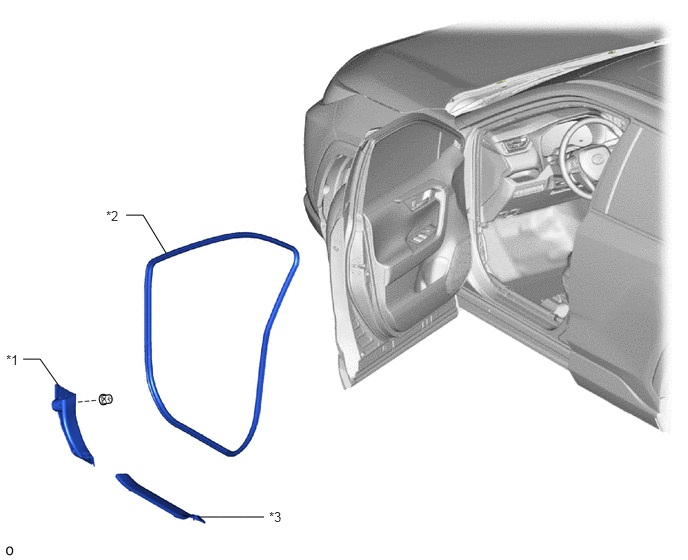

Fig 1: Front Door Opening Trim Weatherstrip Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
COWL SIDE TRIM BOARD LH
*2
FRONT DOOR OPENING TRIM WEATHERSTRIP LH
*3
FRONT DOOR SCUFF PLATE LH
-
-
