Removal [02/2019 - 10/2019]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [11/2018 - ]
- REMOVE DECK BOARD ASSEMBLY (for HV Model)
Refer to PROCEDURE - Step 2
- REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)
Refer to PROCEDURE - Step 3
- REMOVE BATTERY HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 4
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
- for A25A-FXS:
Refer to PROCEDURE - Step 5
- for A25A-FKS:
Refer to PROCEDURE - Step 2
WARNING:- Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [02/2019 - 10/2019]
- for A25A-FXS:
- REMOVE REAR DOOR INSIDE HANDLE BEZEL LH
Refer to PROCEDURE - Step 6
- REMOVE DOOR ASSIST GRIP COVER LH
Refer to PROCEDURE - Step 7
- REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
Refer to PROCEDURE - Step 8
- REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 11
- REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH
Refer to PROCEDURE - Step 13
- REMOVE REAR DOOR FRONT BELT SEAL LH
Refer to PROCEDURE - Step 14
- REMOVE REAR DOOR REAR BELT SEAL LH
Refer to PROCEDURE - Step 15
- REMOVE REAR DOOR SERVICE HOLE COVER LH
Refer to PROCEDURE - Step 17
- REMOVE REAR DOOR FRAME GARNISH LH
Refer to PROCEDURE - Step 18
- DISCONNECT REAR DOOR GLASS RUN LH
Refer to PROCEDURE - Step 19
- REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 20
- REMOVE REAR DOOR GLASS RUN LH
Refer to PROCEDURE - Step 21
- REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 24
- REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 25
- REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY LH

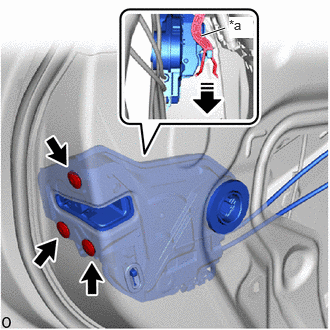

- Using a T30 "TORX" socket wrench, remove the 3 "TORX" screws.
*a Release Plate Remove in this Direction - Remove the release plate of the rear door outside handle frame sub-assembly LH in the direction indicated by the arrow shown in the illustration to remove the rear door lock with motor assembly LH.
- Using a T30 "TORX" socket wrench, remove the 3 "TORX" screws.

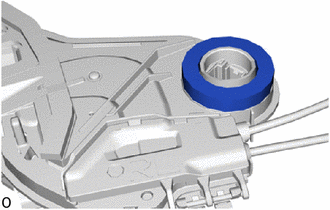

- REMOVE DOOR LOCK WIRING HARNESS SEAL

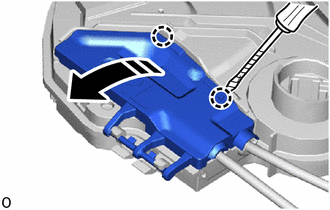

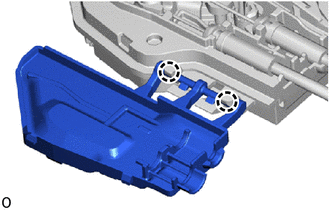

- REMOVE REAR DOOR LOCK COVER SUB-ASSEMBLY LH

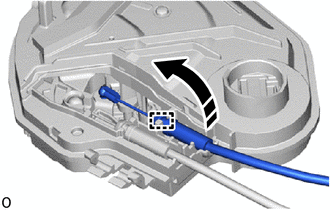

- REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

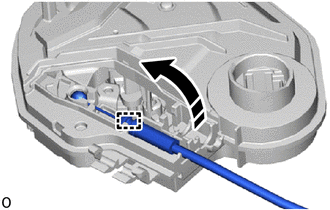

- REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY
