Removal [11/2018 - ]: Procedure

  1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

    See step  3

  5. REMOVE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
    1. w/ Seat Belt Warning System:
      1. Disconnect the 2 connectors.

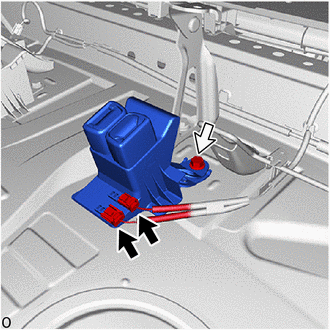

        GTY839603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Connector
        Bolt
    2. Loosen the bolt and remove the rear seat inner with center belt assembly LH.
  7. REMOVE REAR SEAT INNER BELT ASSEMBLY
    1. w/ Seat Belt Warning System:
      1. Disconnect the connector.

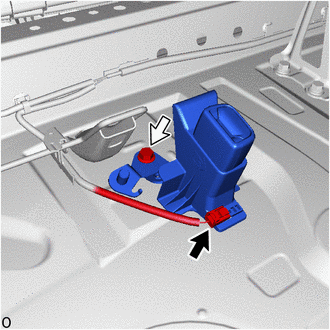

        GTY852107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Connector
        Bolt
    2. Remove the bolt and rear seat inner belt assembly.
