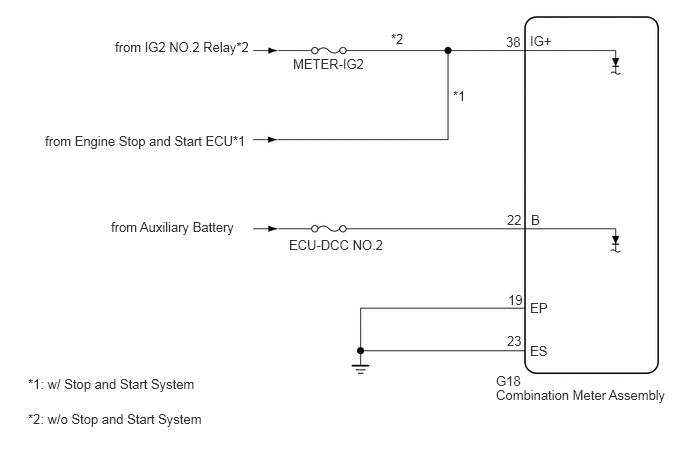

Entire Combination Meter does not Operate [11/2018 - 10/2022]: Wiring Diagram

GTY896913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
