DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [10/2022 - ]: Wiring Diagram

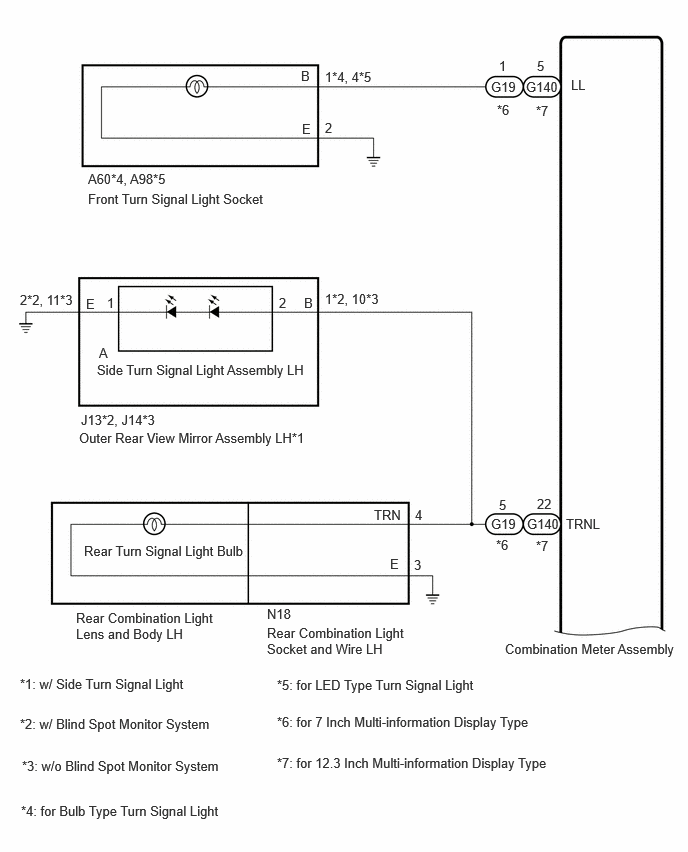

GTY1113436

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

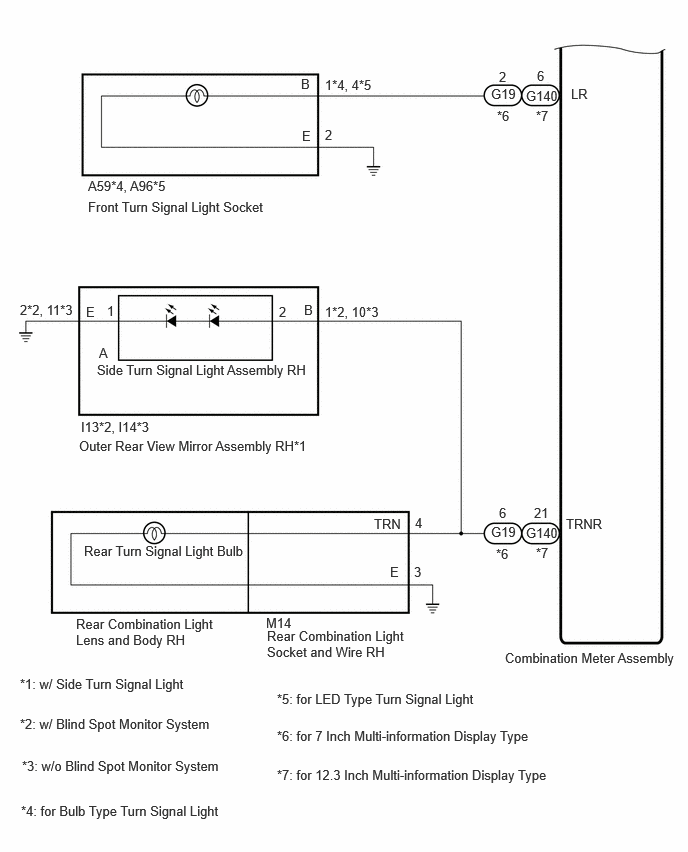

GTY1115596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
