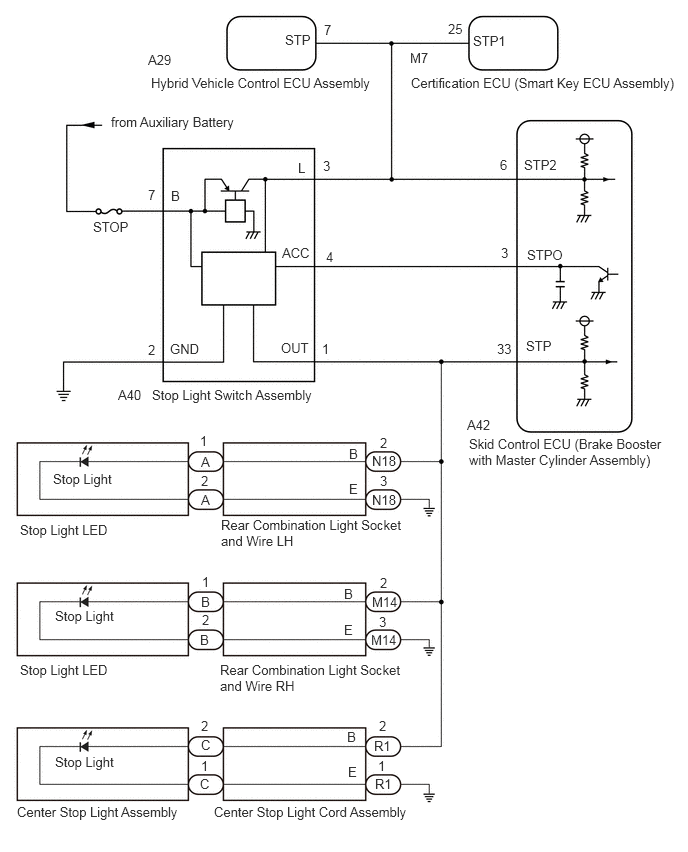

DTC C1380: Stop Light Control Relay Malfunction [11/2018 - 02/2019]: Wiring Diagram

GTY853227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
