ELECTRONICALLY CONTROLLED BRAKE SYSTEM (w/o Vacuum Brake Booster)
>>
DTC C1380: Stop Light Control Relay Malfunction [10/2019 - 12/2021]
>>

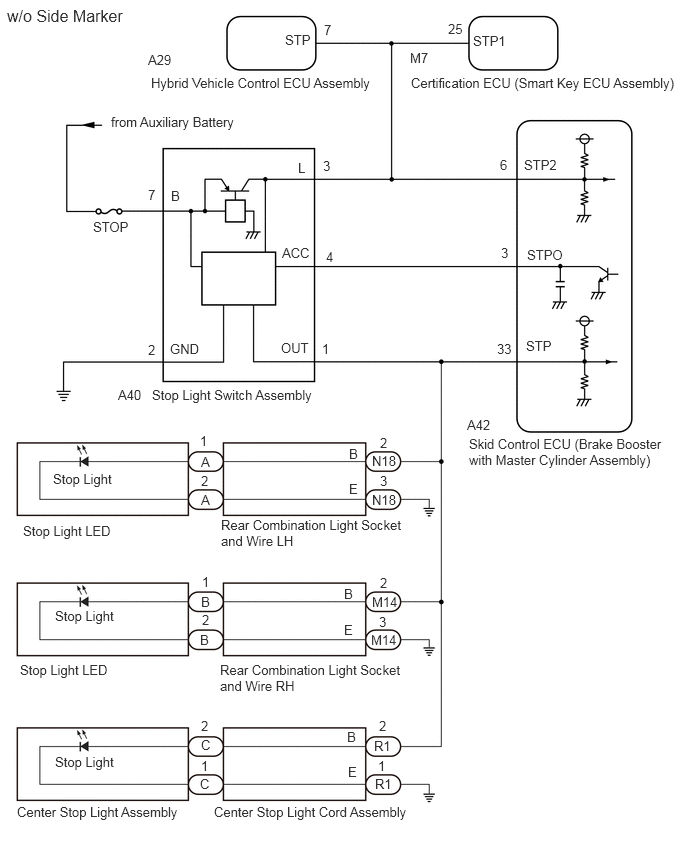

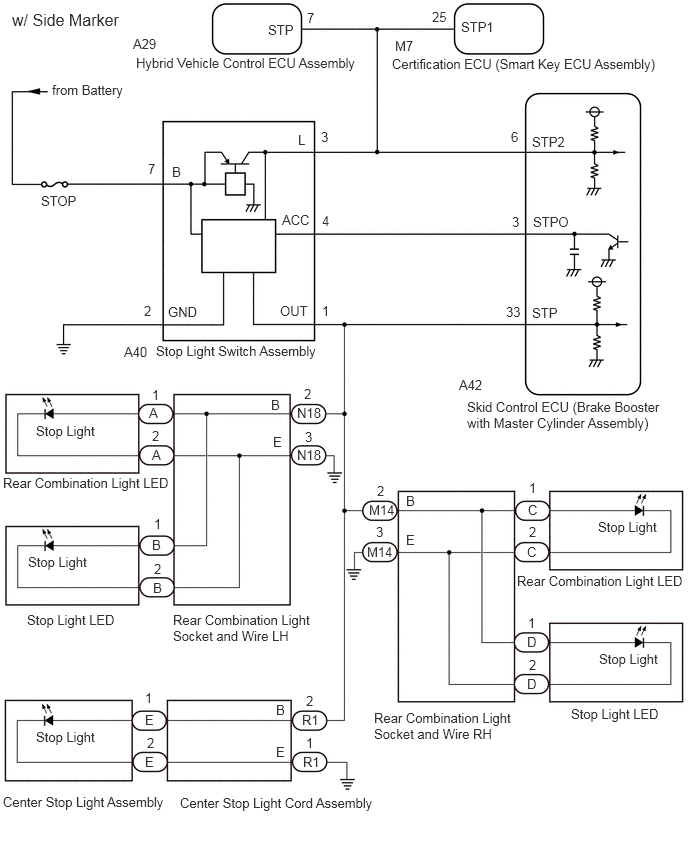

Wiring Diagram
DTC C1380: Stop Light Control Relay Malfunction [10/2019 - 12/2021]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
