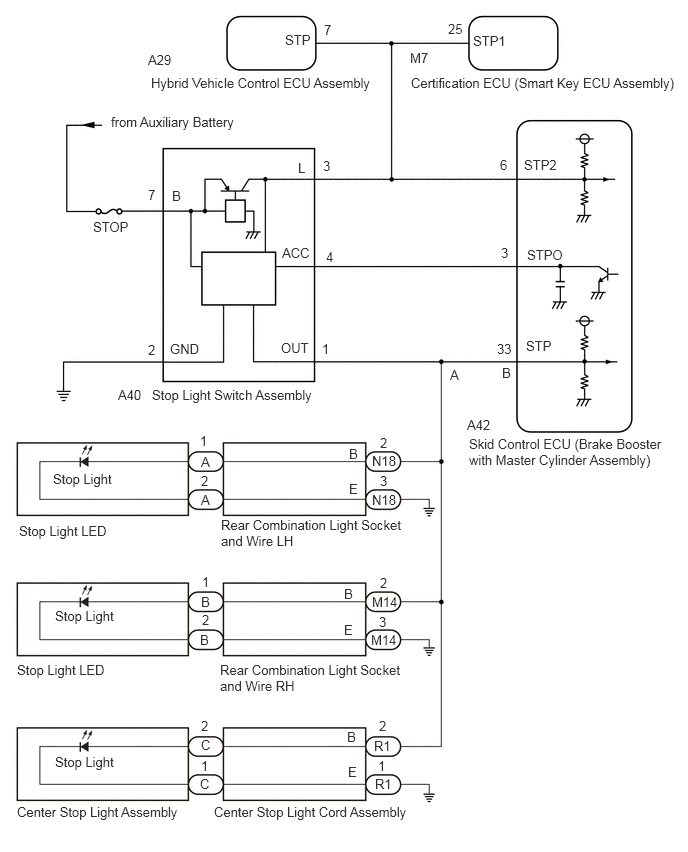

DTC C1249: Open Circuit in Stop Light Switch Circuit [11/2018 - 02/2019]: Wiring Diagram

GTY853228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
