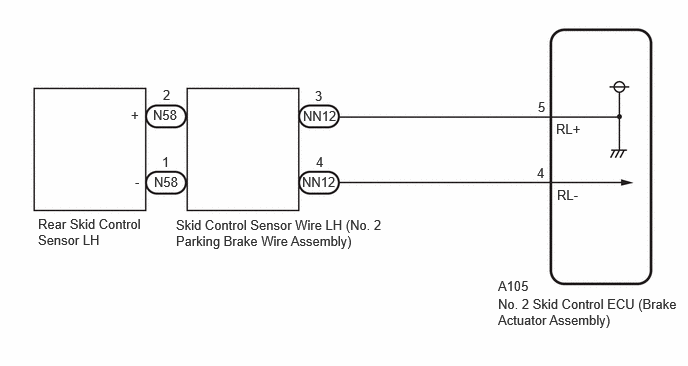

DTC C050C-12: Left Rear Wheel Speed Sensor Circuit Short to Battery [10/2022 - ]: Wiring Diagram

GTY1117585

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
