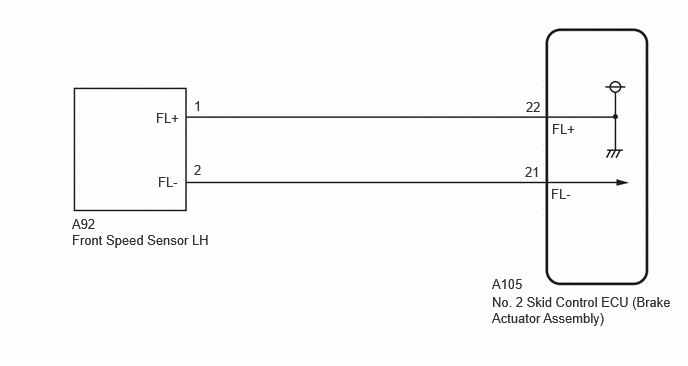

DTC C0500-12: Left Front Wheel Speed Sensor Circuit Short to Battery [10/2022 - ]: Wiring Diagram

GTY1117566

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
