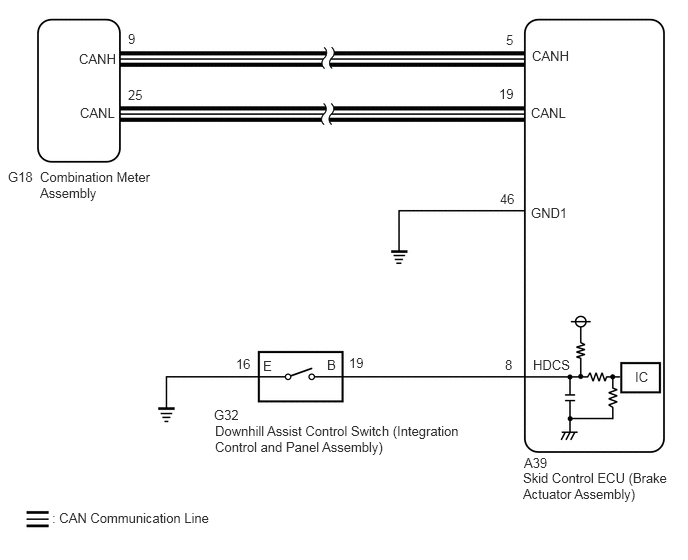

Downhill Assist Control Indicator Light does not Come ON [11/2018 - 10/2022]: Wiring Diagram

GTY886190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
