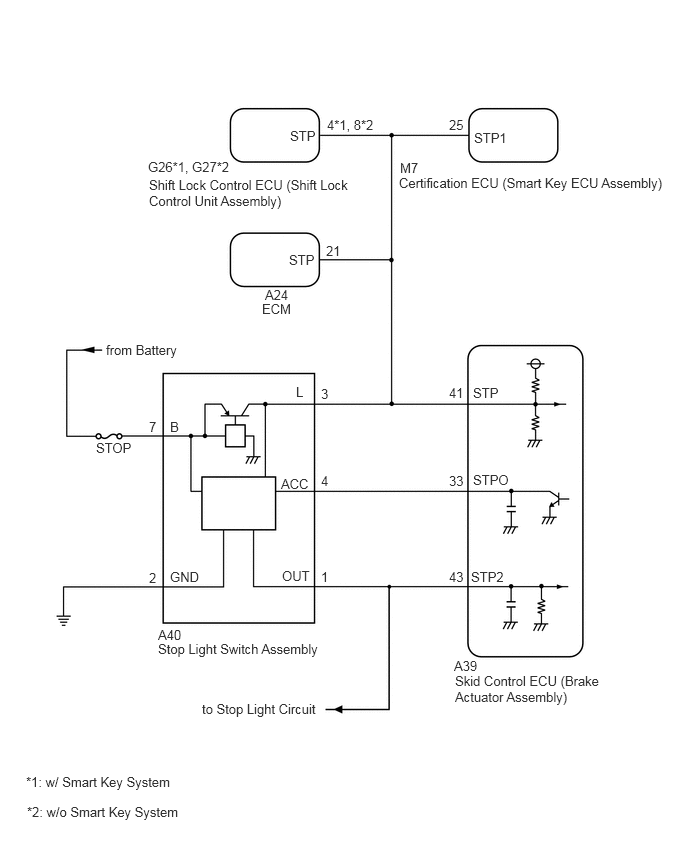

DTC P0571-11: Brake Switch "A" Circuit Short to Ground [11/2018 - ]: Wiring Diagram

GTY935471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
