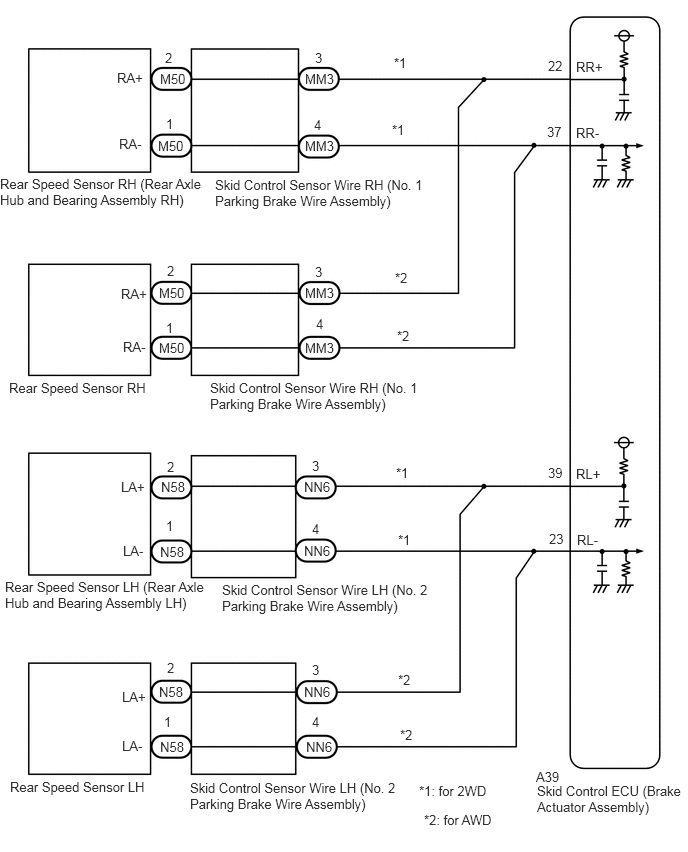

DTC C050C-12: Left Rear Wheel Speed Sensor Circuit Short to Battery; DTC C0512-12: Right Rear Wheel Speed Sensor Circuit Short to Battery [10/2019 - 12/2021]: Wiring Diagram

GTY907980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
