Electronically Controlled Brake System (W/ Vacuum Brake Booster) - Diagnostic Codes (1 Of 3)
>>
ELECTRONICALLY CONTROLLED BRAKE SYSTEM (w/ Vacuum Brake Booster)
>>
DTC C0500-12: Left Front Wheel Speed Sensor Circuit Short to Battery; DTC C0506-12: Right Front Wheel Speed Sensor Circuit Short to Battery [11/2018 - ]
>>
Wiring Diagram

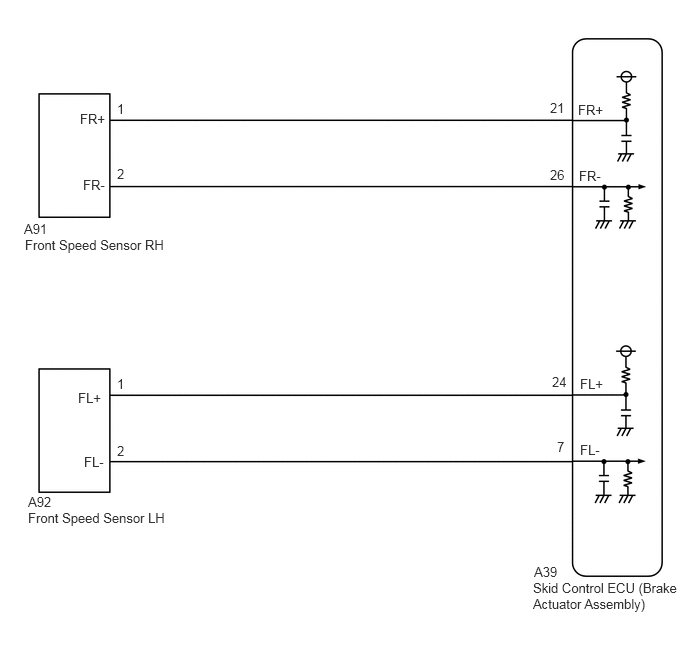

DTC C0500-12: Left Front Wheel Speed Sensor Circuit Short to Battery; DTC C0506-12: Right Front Wheel Speed Sensor Circuit Short to Battery [11/2018 - ]: Wiring Diagram
