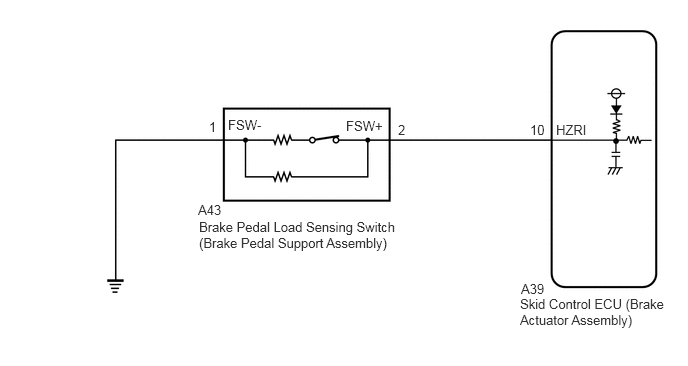

DTC C0040-13: Brake Pedal Switch "A" Circuit Open [11/2018 - ]: Wiring Diagram

GTY889364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
