Components [12/2021 - ]

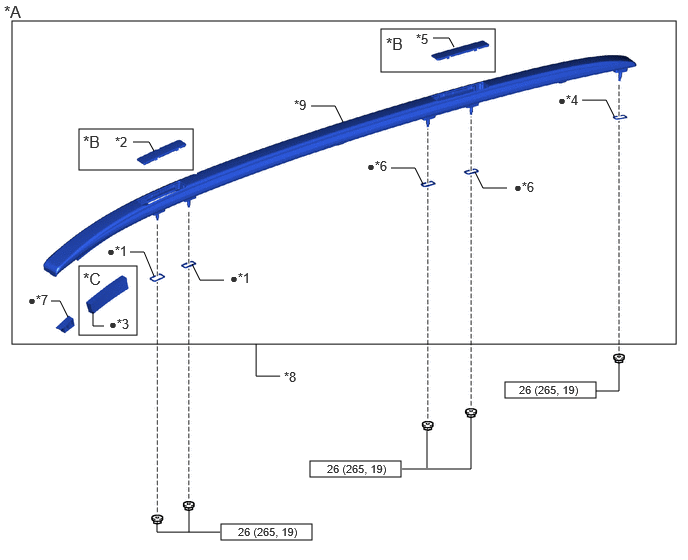

Fig 1: Roof Rack Replacement Components With Torque Specifications [12/2021 - ] (1 Of 2)

GTY1118489

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	except Off Road Package	*B	w/o Roof Carrier
*C	for Panoramic Moon Roof	-	-
*1	NO. 1 ROOF CARRIER SEAL LH	*2	NO. 1 ROOF SIDE GARNISH LID LH
*3	NO. 1 ROOF SIDE GARNISH PROTECTOR	*4	NO. 2 ROOF CARRIER SEAL SUPPORT
*5	NO. 2 ROOF SIDE GARNISH LID LH	*6	NO. 3 ROOF CARRIER SEAL SUPPORT
*7	ROOF SIDE RAIL GARNISH PAD LH	*8	ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH
*9	ROOF SIDE RAIL GARNISH LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

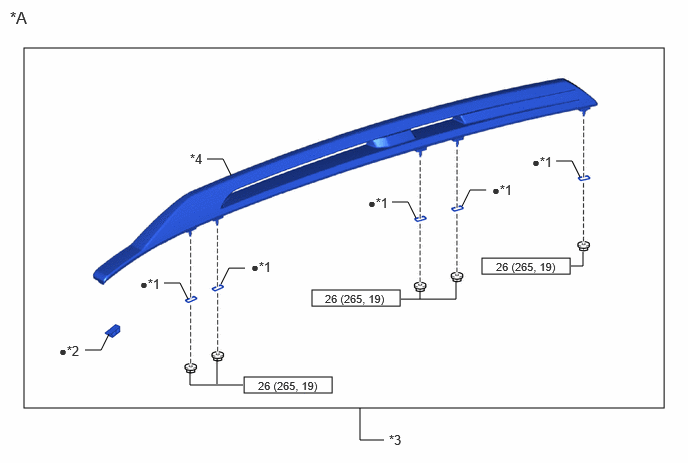

Fig 2: Roof Rack Replacement Components With Torque Specifications [12/2021 - ] (2 Of 2)

GTY1111722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Off Road Package	-	-
*1	NO. 2 ROOF CARRIER SEAL LH	*2	ROOF SIDE RAIL GARNISH PAD LH
*3	ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH	*4	ROOF SIDE RAIL GARNISH LH
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
