Components [11/2018 - ]

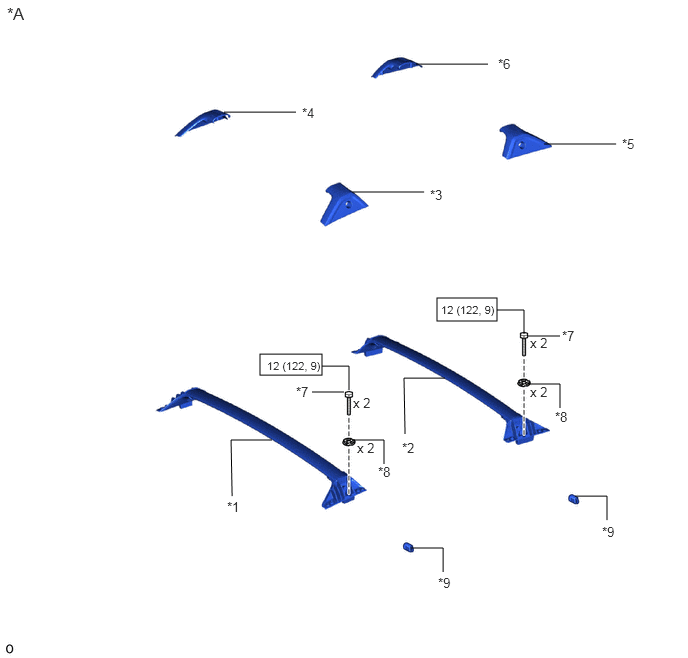

Fig 1: Roof Carrier Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	except Off Road Package	-	-
*1	FRONT ROOF CARRIER BAR	*2	REAR ROOF CARRIER BAR
*3	FRONT ROOF RACK LEG COVER LH	*4	FRONT ROOF RACK LEG COVER RH
*5	REAR ROOF RACK LEG COVER LH	*6	REAR ROOF RACK LEG COVER RH
*7	ROOF RACK BAR JOINT	*8	WASHER
*9	SOCKET KEY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

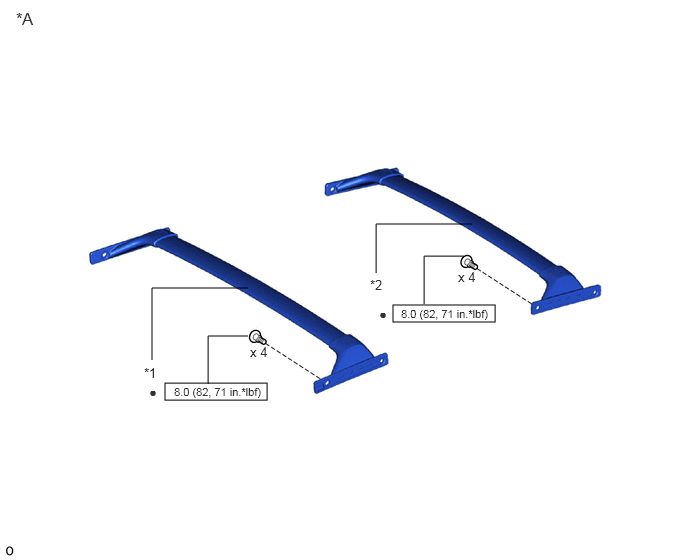

Fig 2: Roof Carrier Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*A	for Off Road Package	-	-
*1	FRONT ROOF CARRIER BAR	*2	REAR ROOF CARRIER BAR
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
