Components [12/2021 - ]

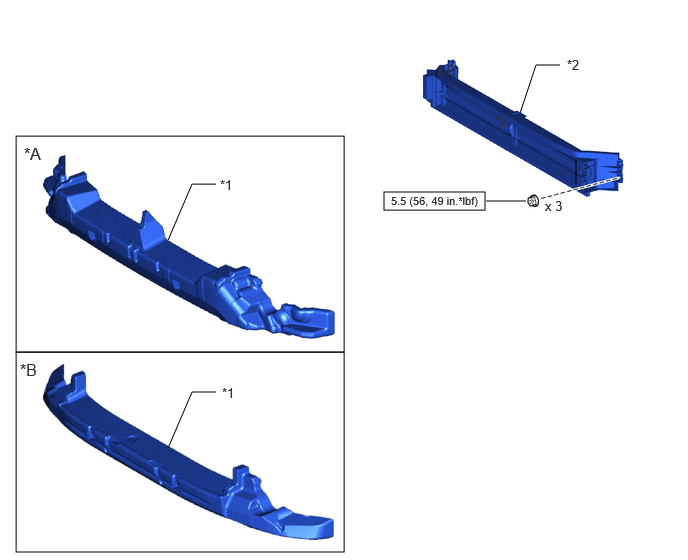

Fig 1: Grille Shutter Replacement Components With Torque Specifications [12/2021 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	except Off Road Package	*B	for Off Road Package
*1	FRONT BUMPER NO. 2 ENERGY ABSORBER	*2	RADIATOR SHUTTER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

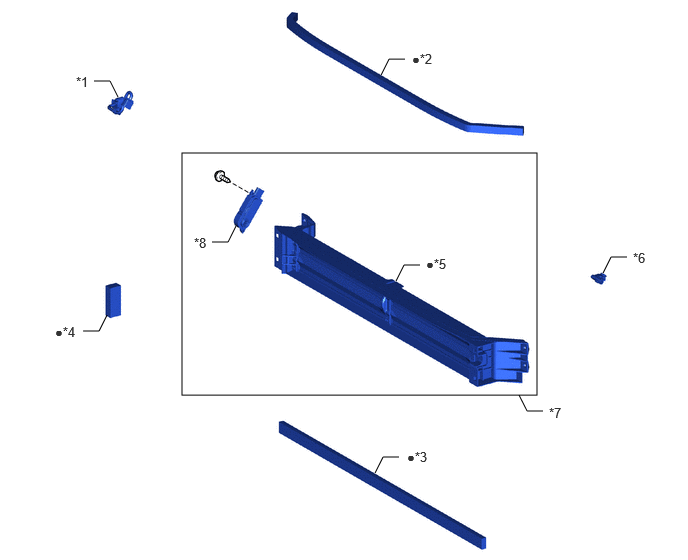

Fig 2: Grille Shutter Replacement Components [12/2021 - ] (2 Of 2)

*1	EXTENSION WIRE ASSEMBLY	*2	NO. 1 RADIATOR GRILLE SEAL
*3	NO. 2 RADIATOR GRILLE SEAL	*4	NO. 3 RADIATOR GRILLE SEAL
*5	RADIATOR SHUTTER SUB-ASSEMBLY	*6	THERMISTOR ASSEMBLY
*7	RADIATOR SHUTTER ASSEMBLY	*8	SWING GRILL ACTUATOR ASSY
•	Non-reusable part	-	-
