Components [11/2018 - 06/2020]

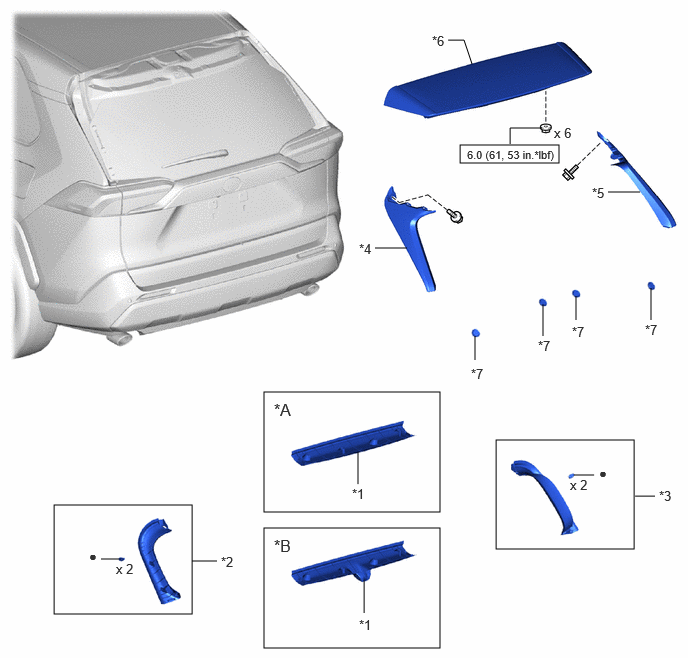

Fig 1: Rear Spoiler Replacement Components With Torque Specifications [11/2018 - 06/2020] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Digital Inner Mirror	*B	w/ Digital Inner Mirror
*1	BACK DOOR CENTER GARNISH	*2	BACK DOOR SIDE GARNISH LH
*3	BACK DOOR SIDE GARNISH RH	*4	REAR SIDE SPOILER SUB-ASSEMBLY LH
*5	REAR SIDE SPOILER SUB-ASSEMBLY RH	*6	REAR SPOILER SUB-ASSEMBLY
*7	HOLE PLUG	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

Fig 2: Rear Spoiler Replacement Components [11/2018 - 06/2020] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER STOP LIGHT ASSEMBLY	*2	CENTER STOP LIGHT CORD ASSEMBLY
*3	REAR SPOILER NO. 1 PROTECTOR	*4	REAR SPOILER NO. 2 PROTECTOR
*5	REAR SPOILER NO. 3 PROTECTOR	*6	REAR SPOILER
•	Non-reusable part	-	-

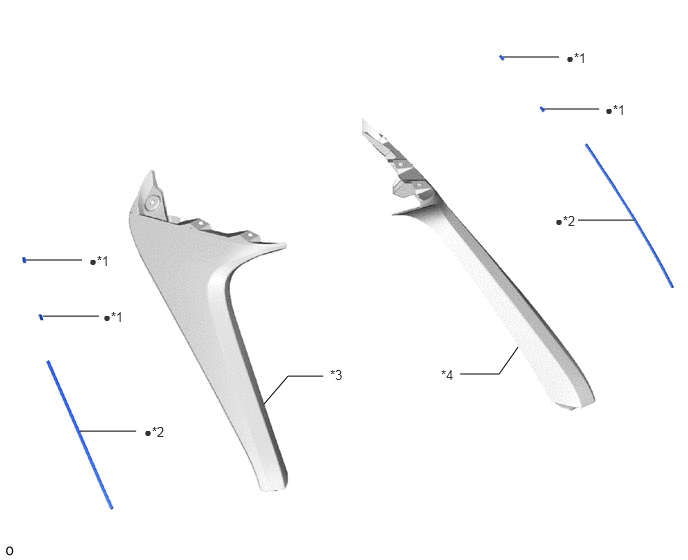

Fig 3: Rear Spoiler Replacement Components [11/2018 - 06/2020] (3 Of 3)
