Components [02/2019 - 06/2020]

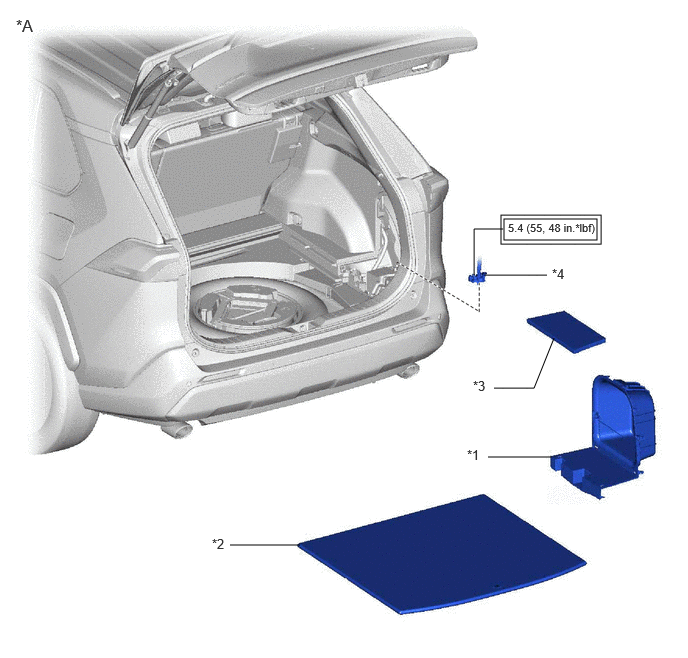

Fig 1: Rear Bumper Replacement Components With Torque Specifications [02/2019 - 06/2020] (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model, w/ Hands Free Power Back Door	-	-
*1	BATTERY HOLE COVER	*2	DECK BOARD ASSEMBLY
*3	REAR NO. 2 FLOOR BOARD	*4	NEGATIVE AUXILIARY BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

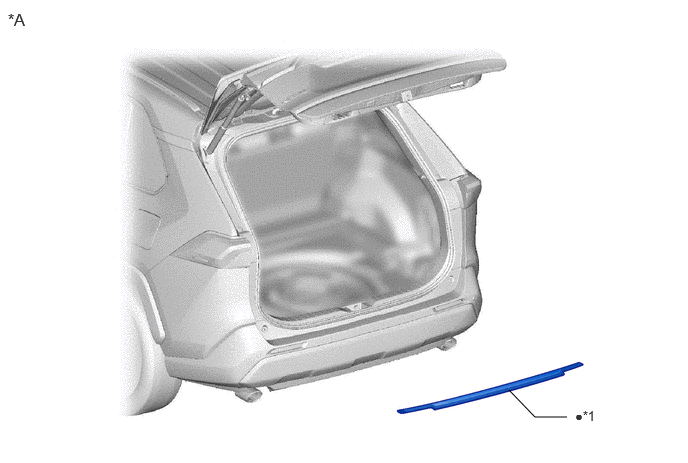

Fig 2: Rear Bumper Replacement Components [02/2019 - 06/2020] (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

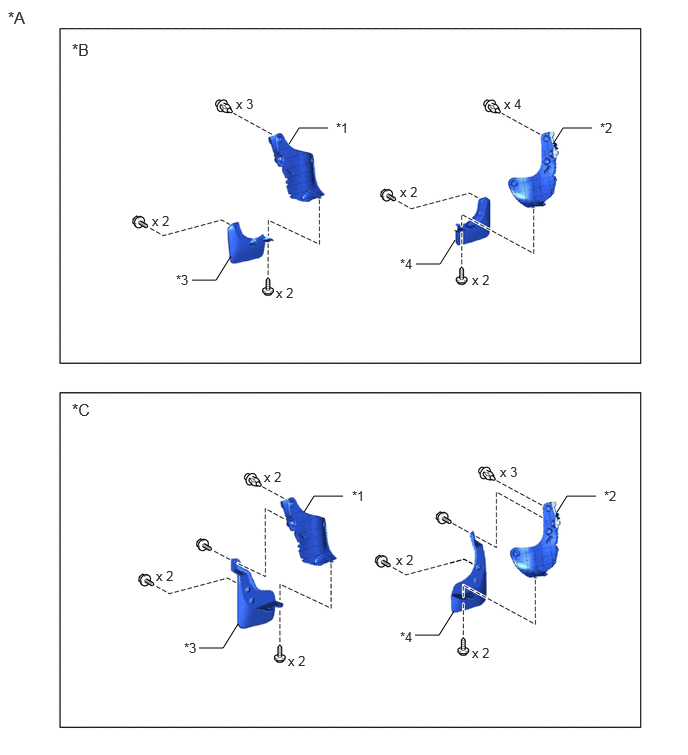

Fig 3: Rear Bumper Replacement Components [02/2019 - 06/2020] (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Mudguard	*B	for Short Type
*C	for Long Type	-	-
*1	REAR BUMPER SIDE SEAL LH	*2	REAR BUMPER SIDE SEAL RH
*3	REAR QUARTER PANEL MUDGUARD LH	*4	REAR QUARTER PANEL MUDGUARD RH

Fig 4: Rear Bumper Replacement Components [02/2019 - 06/2020] (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Mudguard	-	-
*1	REAR BUMPER SIDE SEAL LH	*2	REAR BUMPER SIDE SEAL RH

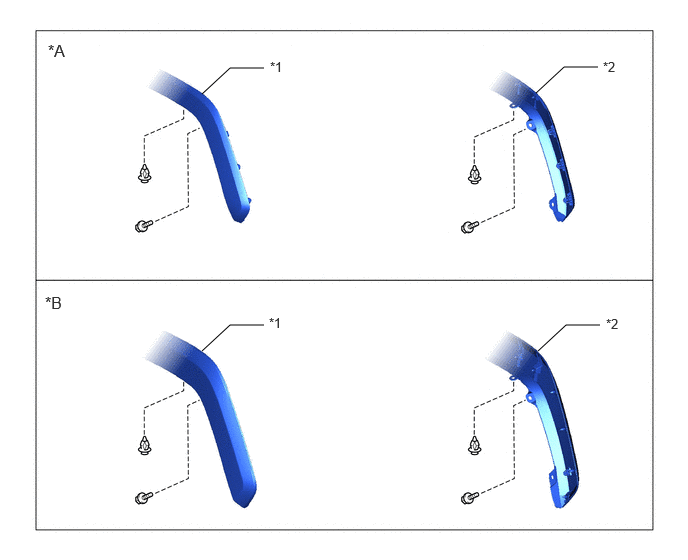

Fig 5: Rear Bumper Replacement Components [02/2019 - 06/2020] (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	except Off Road Package	*B	for Off Road Package
*1	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH	*2	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH

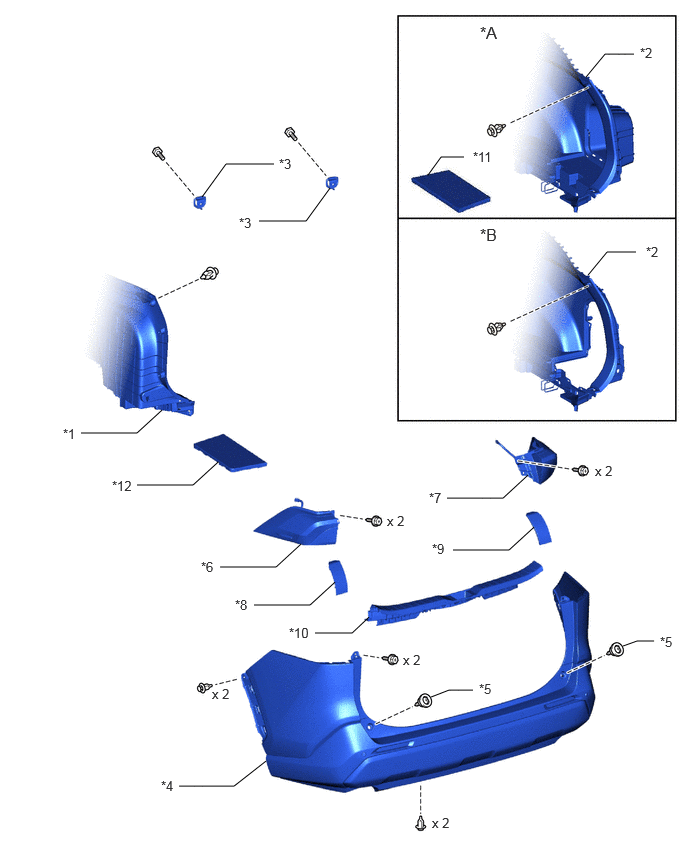

Fig 6: Rear Bumper Replacement Components [02/2019 - 06/2020] (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Gasoline Model	*B	for HV Model
*1	DECK TRIM SIDE PANEL ASSEMBLY LH	*2	DECK TRIM SIDE PANEL ASSEMBLY RH
*3	LUGGAGE HOLD BELT STRIKER ASSEMBLY	*4	REAR BUMPER ASSEMBLY
*5	REAR BUMPER UPPER STOPPER	*6	REAR COMBINATION LIGHT ASSEMBLY LH
*7	REAR COMBINATION LIGHT ASSEMBLY RH	*8	REAR COMBINATION LIGHT COVER LH
*9	REAR COMBINATION LIGHT COVER RH	*10	REAR FLOOR FINISH PLATE
*11	REAR NO. 2 FLOOR BOARD	*12	REAR NO. 3 FLOOR BOARD

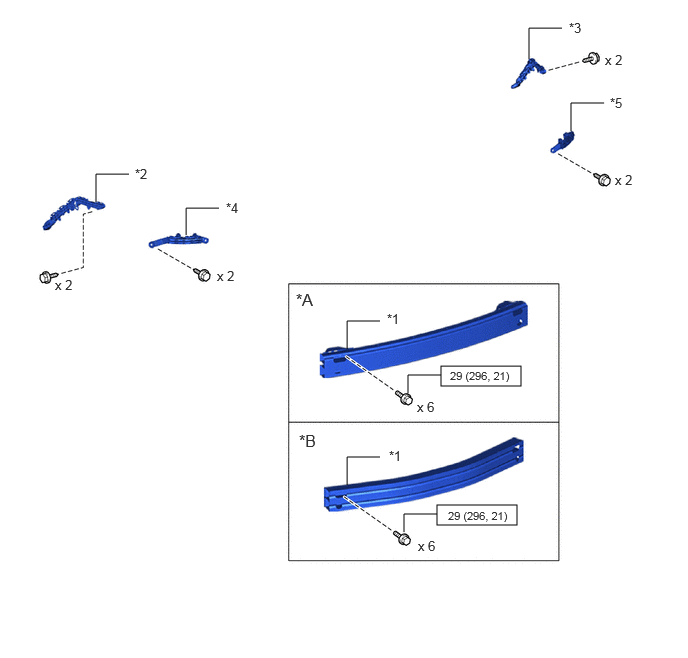

Fig 7: Rear Bumper Replacement Components With Torque Specifications [02/2019 - 06/2020] (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Type A	*B	for Type B
*1	REAR BUMPER REINFORCEMENT SUB-ASSEMBLY	*2	REAR BUMPER SIDE SUPPORT LH
*3	REAR BUMPER SIDE SUPPORT RH	*4	REAR BUMPER UPPER RETAINER LH
*5	REAR BUMPER UPPER RETAINER RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

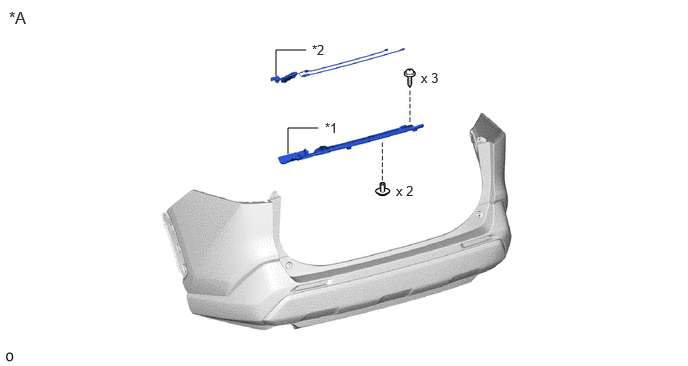

Fig 8: Rear Bumper Replacement Components [02/2019 - 06/2020] (8 Of 11)

*A	w/ Hands Free Power Back Door	-	-
*1	KICK DOOR CONTROL BRACKET	*2	KICK DOOR CONTROL SENSOR

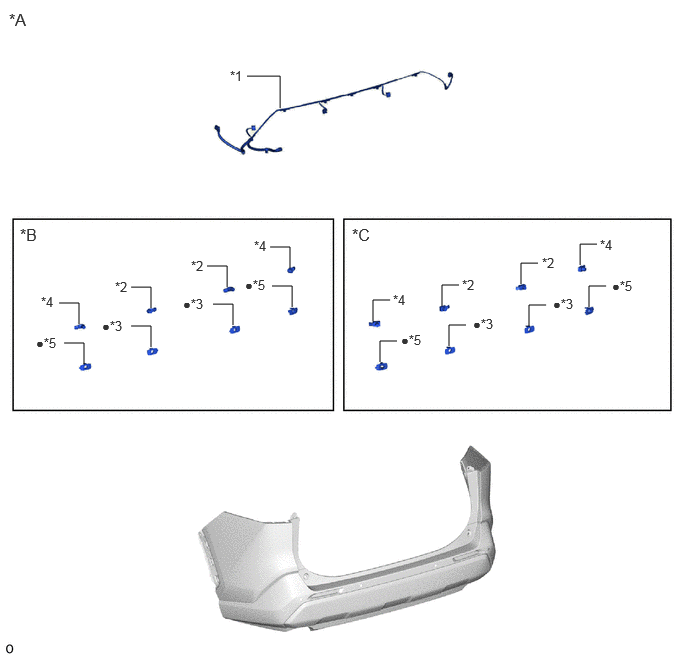

Fig 9: Rear Bumper Replacement Components [02/2019 - 06/2020] (9 Of 11)

*A	w/ Intuitive Parking Assist System	*B	w/o Parking Support Brake System
*C	w/ Parking Support Brake System	-	-
*1	NO. 2 LUGGAGE ROOM WIRE	*2	REAR CENTER ULTRASONIC SENSOR
*3	REAR CENTER ULTRASONIC SENSOR RETAINER	*4	REAR CORNER ULTRASONIC SENSOR
*5	REAR CORNER ULTRASONIC SENSOR RETAINER	-	-
•	Non-reusable part	-	-

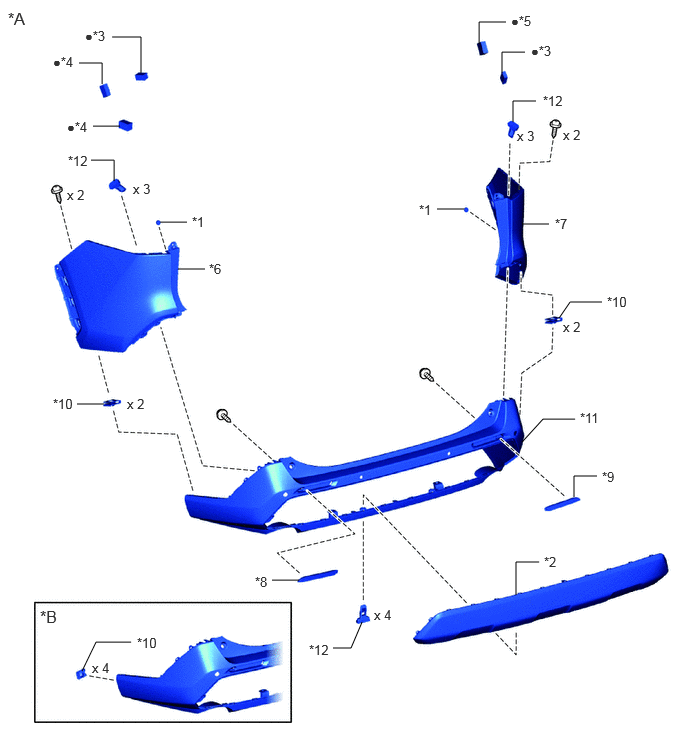

Fig 10: Rear Bumper Replacement Components [02/2019 - 06/2020] (10 Of 11)

*A	except Separate Type	*B	w/ Mudguard
*1	BACK DOOR GARNISH RETAINER	*2	REAR BUMPER CENTER PAD
*3	REAR BUMPER PAD	*4	REAR BUMPER PAD LH
*5	REAR BUMPER PAD RH	*6	REAR BUMPER PIECE LH
*7	REAR BUMPER PIECE RH	*8	REFLEX REFLECTOR ASSEMBLY LH
*9	REFLEX REFLECTOR ASSEMBLY RH	*10	SPRING NUT
*11	REAR BUMPER COVER	*12	OUTSIDE MOULDING RETAINER
•	Non-reusable part	-	-

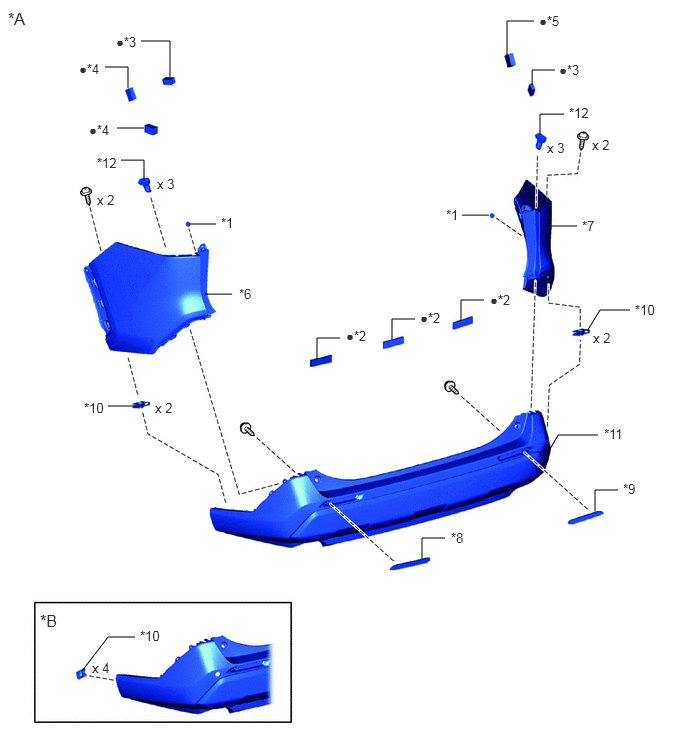

Fig 11: Rear Bumper Replacement Components [02/2019 - 06/2020] (11 Of 11)

*A	for Separate Type	*B	w/ Mudguard
*1	BACK DOOR GARNISH RETAINER	*2	REAR BUMPER CENTER GUARD
*3	REAR BUMPER PAD	*4	REAR BUMPER PAD LH
*5	REAR BUMPER PAD RH	*6	REAR BUMPER PIECE LH
*7	REAR BUMPER PIECE RH	*8	REFLEX REFLECTOR ASSEMBLY LH
*9	REFLEX REFLECTOR ASSEMBLY RH	*10	SPRING NUT
*11	REAR BUMPER COVER	*12	OUTSIDE MOULDING RETAINER
•	Non-reusable part	-	-
