Steering Pad Switch Circuit [11/2018 - 08/2020]: Wiring Diagram

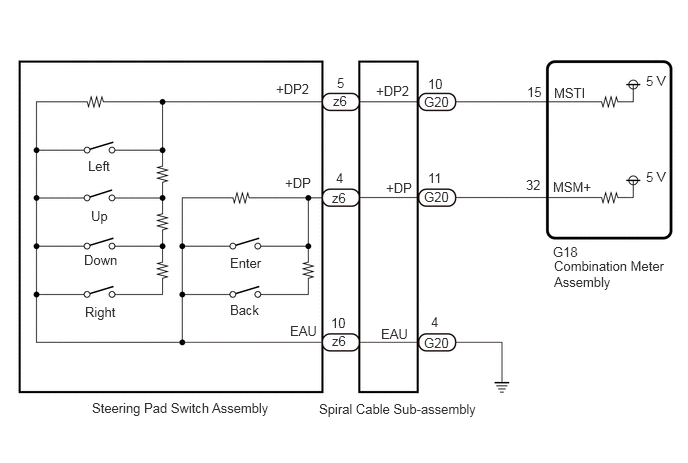

Fig 1: Steering Pad Switch Circuit [11/2018 - 08/2020]

GTY858513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
