Steering Pad Switch Circuit [10/2022 - ]: Wiring Diagram

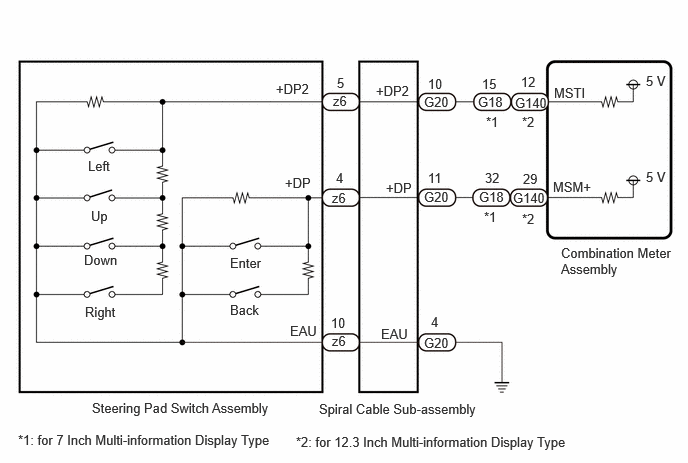

Fig 1: Steering Pad Switch Circuit [10/2022 - ]

GTY1120937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
