Speed Signal Circuit [10/2019 - 08/2020]: Wiring Diagram

For HV Model:

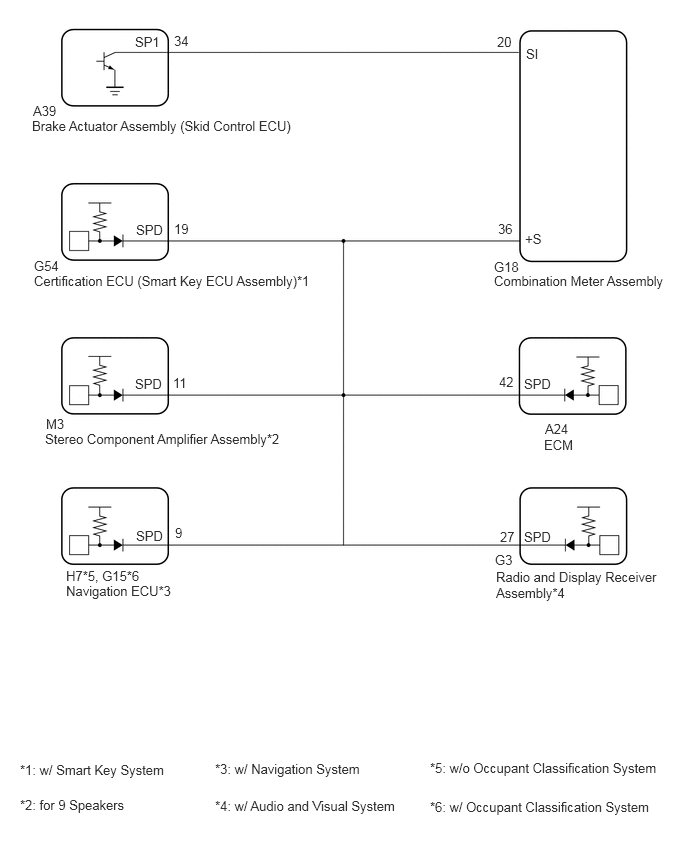

Fig 1: For HV Model: [10/2019 - 08/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For Gasoline Model:

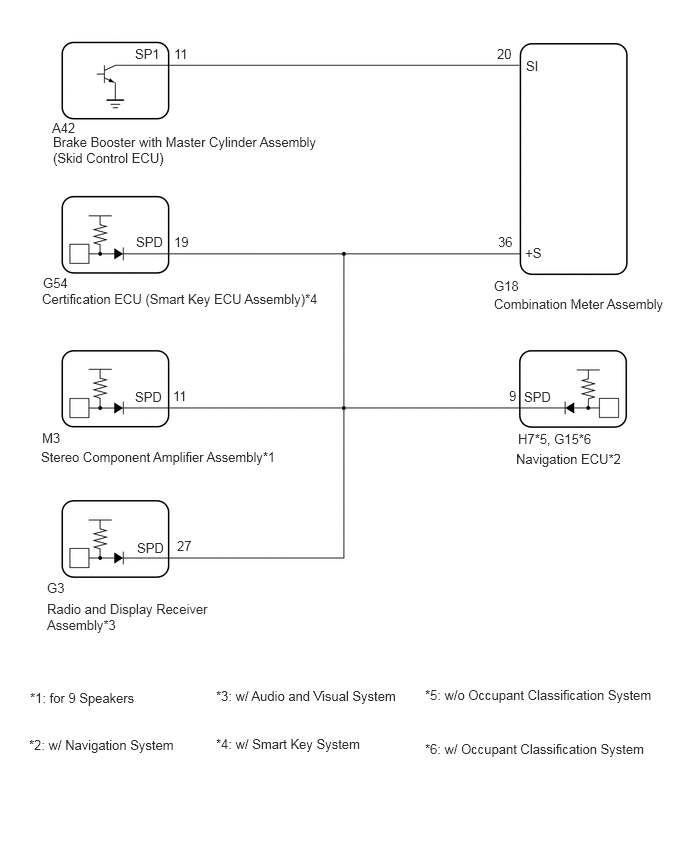

Fig 2: For Gasoline Model: [10/2019 - 08/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
