DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [11/2018 - 02/2019]: Wiring Diagram

  1. w/ Headlight ECU:

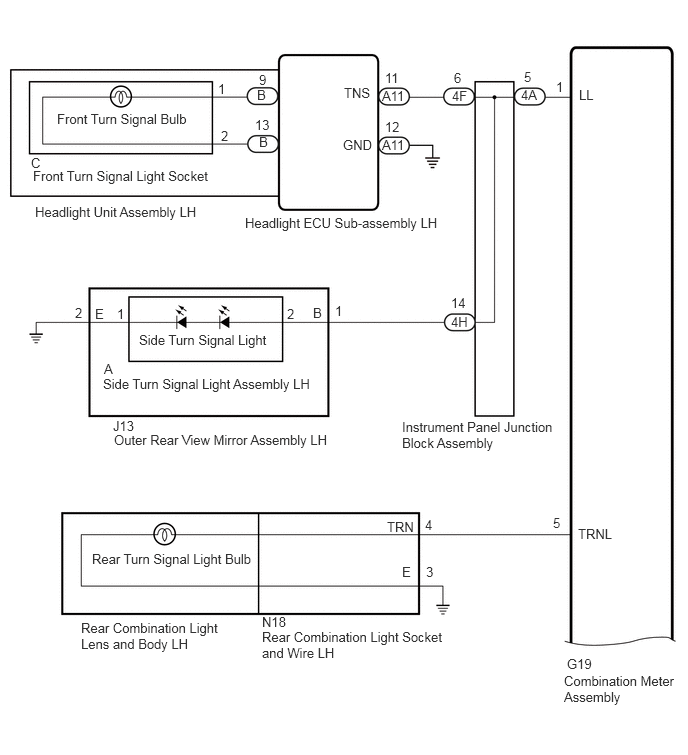

    GTY839823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

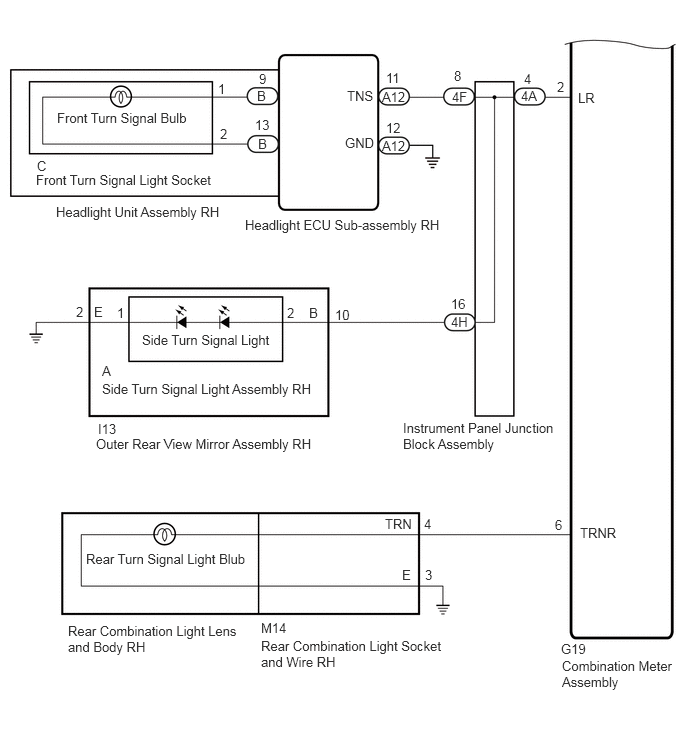

    GTY930259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Headlight ECU:
    GTY874188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY896323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
