DTC B1500-13: Fuel Sender Circuit Open; DTC B1501-13: Sub Fuel Sender Circuit Open [02/2019 - 08/2020]: Wiring Diagram

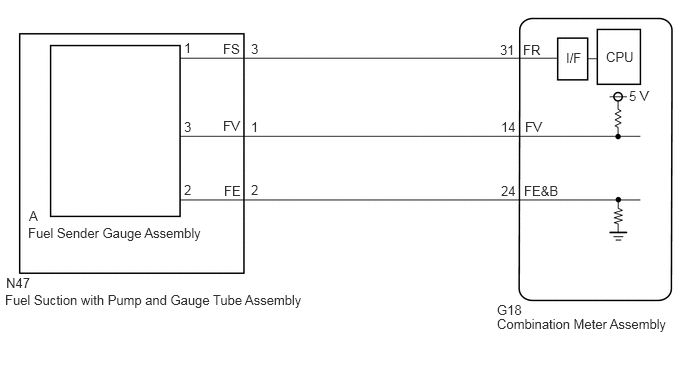

for Gasoline Model:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

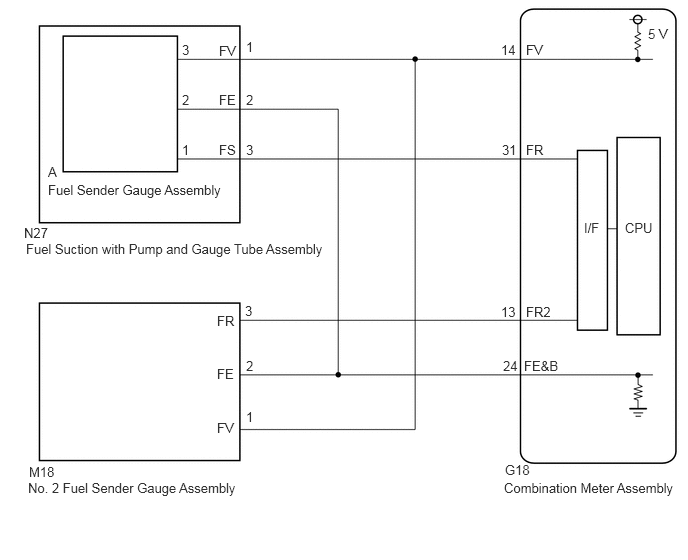

for HV Model:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
