Installation [10/2022 - ]: Procedure

INSTALL TRIP SWITCH

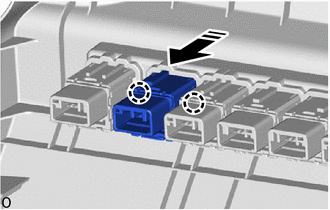

Attach the claw to install the trip switch as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL FUSE BOX OPENING COVER
Refer to PROCEDURE - Step 19
INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Gasoline Model)
Refer to PROCEDURE - Step 20
INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 21
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 24
INSTALL COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 25
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 26
