Installation [11/2018 - ]: Procedure

INSTALL LIGHT CONTROL RHEOSTAT

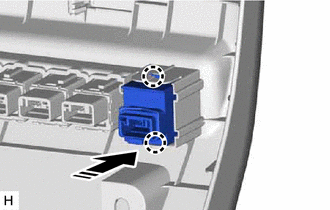

Attach the claw to install the light control rheostat as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL FUSE BOX OPENING COVER
Refer to PROCEDURE - Step 20 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 19 [08/2020 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - ]
INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Gasoline Model)
Refer to PROCEDURE - Step 21 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 20 [08/2020 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - ]
INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 22 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 21 [08/2020 - 10/2022] , or refer to PROCEDURE - Step 21 [10/2022 - ]
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 25 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 24 [08/2020 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - ]
INSTALL COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 26 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 25 [08/2020 - 10/2022] , or refer to PROCEDURE - Step 25 [10/2022 - ]
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 59 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 60 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 58 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 58 [10/2023 - ]
