Reassembly [10/2022 - ]: Procedure

  1. INSTALL COMBINATION METER GLASS
    1. for 7 Inch Display:
      GTY888060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Attach the claw to install the combination meter glass.

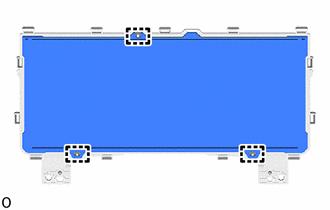

    2. for 12.3 Inch Display:
      GTY1177269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Attach the guide to install the combination meter glass.

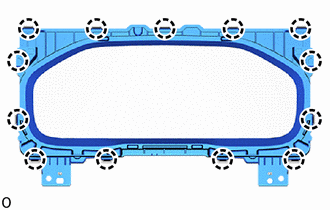

  2. INSTALL NO. 1 COMBINATION METER PLATE (for 12.3 Inch Display)
    1. Attach the claw to install the No. 1 combination meter plate.
      GTY1177270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
