Installation [11/2018 - 10/2022]: Procedure

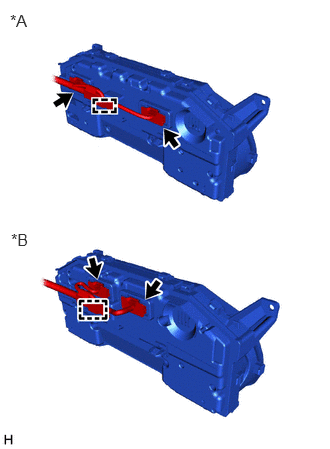

1. Connect the 2 connectors and attach the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for 4.2 Inch Display
   *B	for 7 Inch Display

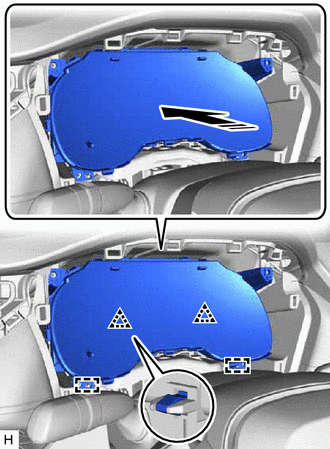

2. Attach the clip and guide to install the combination meter assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

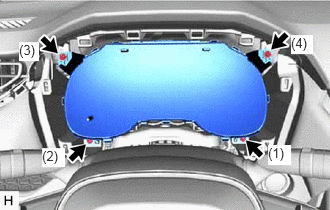

3. Install the 4 screws in the order shown n the illustration.
   Fig 1: Combination Meter Assembly Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 31 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 30 [08/2020 - 10/2022]

Refer to PROCEDURE - Step 32 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 31 [08/2020 - 10/2022]
