Installation [10/2022 - ]: Procedure

1. for 7 Inch display:
   1. Connect the 2 connectors and attach the clamp.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Attach the guide and clip to install the combination meter assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install in this Direction

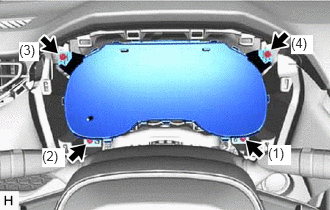

   3. Install the 4 screws in the order shown in the illustration.
      Fig 1: Combination Meter Assembly Screws Tightening Sequence - For 7 Inch display

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for 12.3 Inch display:
   1. Connect the 2 connectors and attach the clamp.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

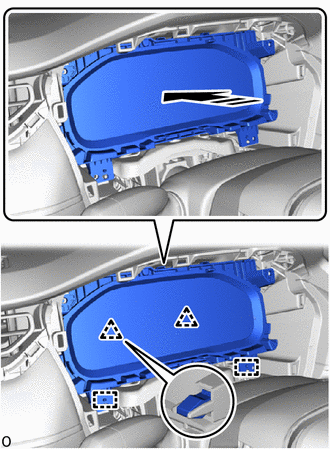

   2. Attach the guide and clip to install the combination meter assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install in this Direction

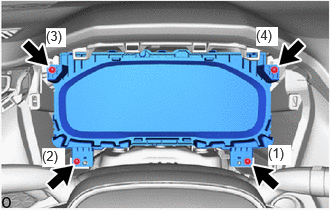

   3. Install the 4 screws in the order shown in the illustration.
      Fig 2: Combination Meter Assembly Screws Tightening Sequence - For 12.3 Inch Display

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 30

Refer to PROCEDURE - Step 31
