Components [11/2018 - 10/2022]

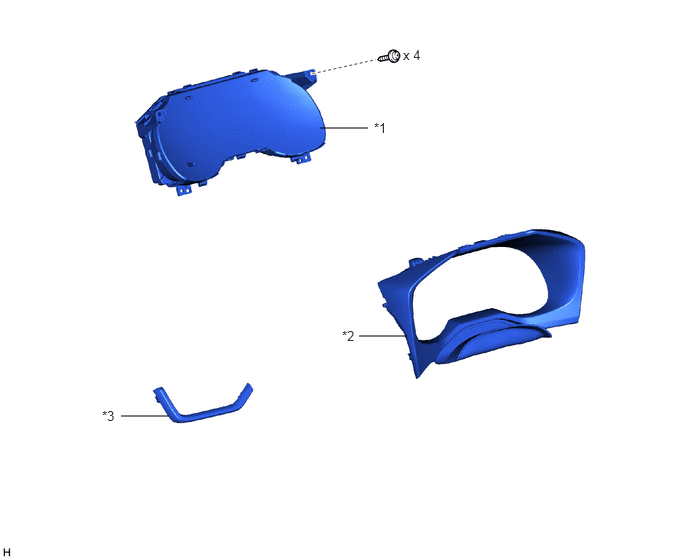

Fig 1: Combination Meter Replacement Components [11/2018 - 10/2022] (1 Of 2)
GTY845630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY *2 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
*3 INSTRUMENT CLUSTER FINISH PANEL GARNISH - -

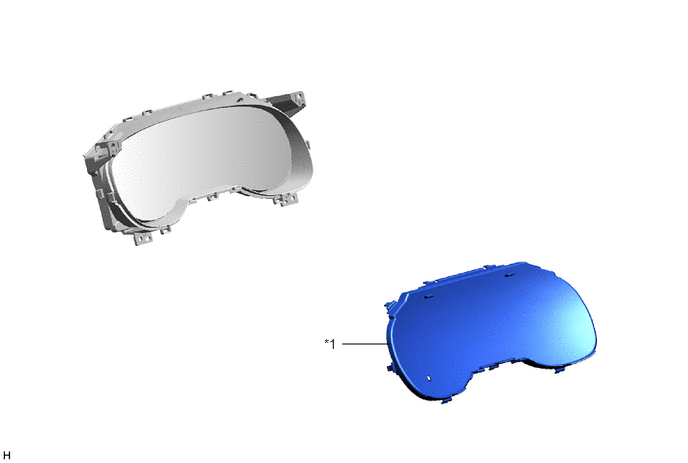

Fig 2: Combination Meter Replacement Components [11/2018 - 10/2022] (2 Of 2)
GTY926832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER GLASS - -
