Components [10/2022 - ]

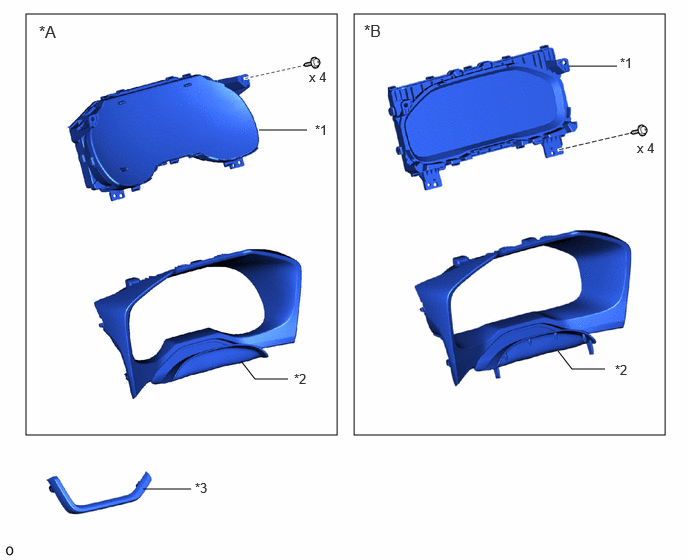

Fig 1: Combination Meter Replacement Components [10/2022 - ] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 7 Inch Display	*B	for 12.3 Inch Display
*1	COMBINATION METER ASSEMBLY	*2	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
*3	INSTRUMENT CLUSTER FINISH PANEL GARNISH	-	-

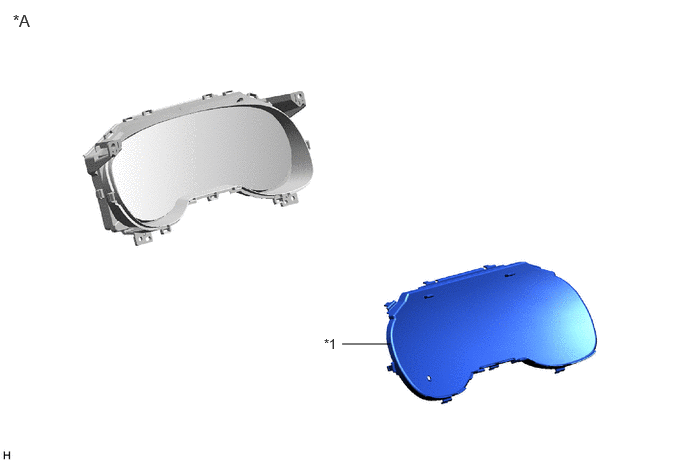

Fig 2: Combination Meter Replacement Components [10/2022 - ] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 7 Inch Display	-	-
*1	COMBINATION METER GLASS	-	-

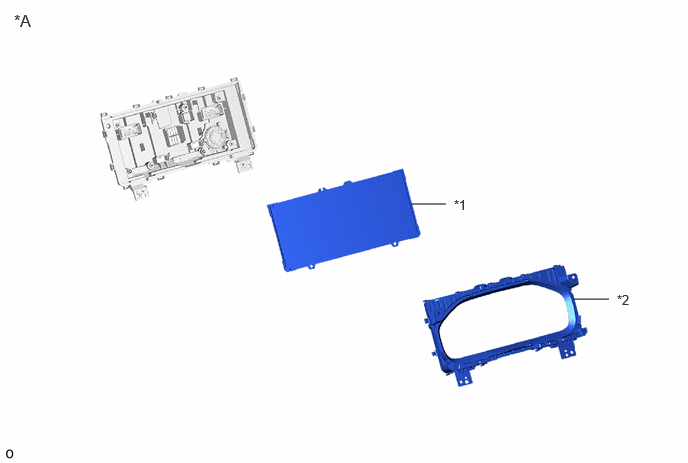

Fig 3: Combination Meter Replacement Components [10/2022 - ] (3 Of 3)

*A	for 12.3 Inch Display	-	-
*1	COMBINATION METER GLASS	*2	NO. 1 COMBINATION METER PLATE
