Removal [09/2016 - 07/2020]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    Refer to PRECAUTION [09/2016 - 05/2019] , or refer to PRECAUTION [05/2019 - 07/2020]

    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2016 - 01/2018] , or refer to PRECAUTION [01/2018 - 05/2019] , or refer to PRECAUTION [05/2019 - ]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2016 - 05/2019] , or refer to INITIALIZATION [05/2019 - 07/2020]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 5

  6. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 6

  7. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  9. REMOVE FRONT DOOR VENT SEAL

    Refer to PROCEDURE - Step 9

  10. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 10

  11. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 16

  12. REMOVE DOOR SIDE AIRBAG SENSOR
    1. Check that the power switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

      GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector from the door side airbag sensor.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

      1. Push down the white housing lock and slide the yellow CPA. (At this time, the connector cannot be disconnected yet.)
        GTY451244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a White Housing Lock *b Yellow CPA
        *c Connector lock is released - -
      2. Push down the white housing lock again and disconnect the connector.
        NOTE:

        Do not push down the part (A) shown in the illustration when disconnecting the connector.

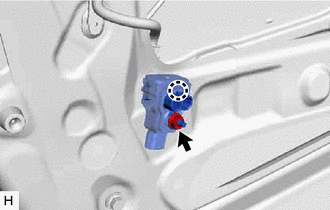

    4. Remove the nut and disengage the claw to remove the door side airbag sensor.
      GTY602463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Check that the position of the white housing lock is as shown in the illustration.
      GTY454543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Incorrect *b Correct
