Removal [09/2016 - ]: Procedure
- REMOVE WASHER NOZZLE SUB-ASSEMBLY

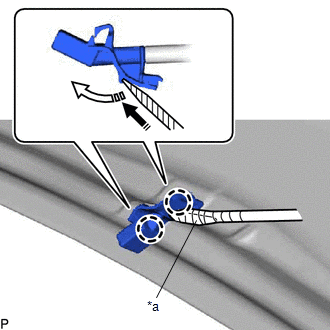

- Using a screwdriver, disengage the 2 claws as indicated by the arrows, in the order shown in the illustration to separate the washer nozzle sub-assembly.
*a Protective Tape Remove in this Direction (1) Remove in this Direction (2) NOTE:Be careful not to damage the windshield glass.
HINT:
Tape the screwdriver tip before use.
- Disconnect the washer hose to remove the washer nozzle sub-assembly.NOTE:
Washer nozzle sub-assemblies cannot be reused.
- Using a screwdriver, disengage the 2 claws as indicated by the arrows, in the order shown in the illustration to separate the washer nozzle sub-assembly.
