Parts Location [09/2016 - 07/2020]: Illustration

WARNING: This page is about a different car, the 2020 Toyota Prius Prime, 2019 Toyota Prius Prime, 2018 Toyota Prius Prime, and 2017 Toyota Prius Prime. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

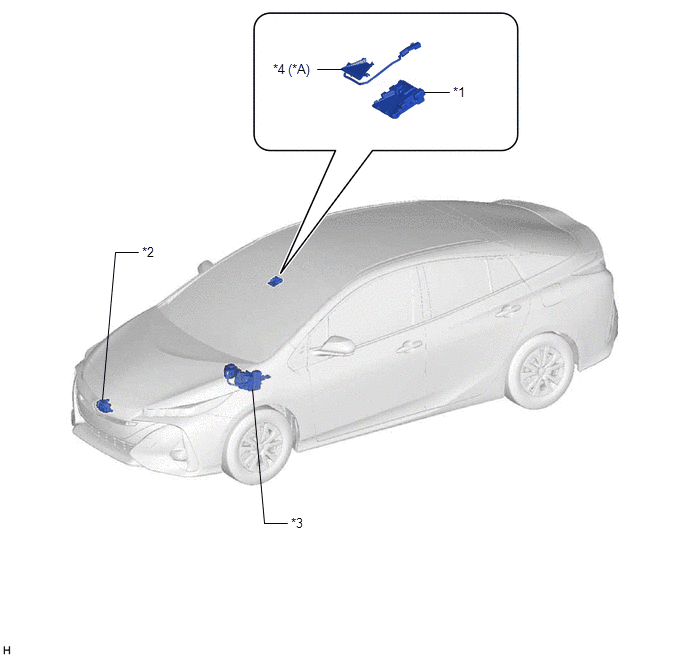

*A	w/ FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY	-	-
*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU	*4	FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

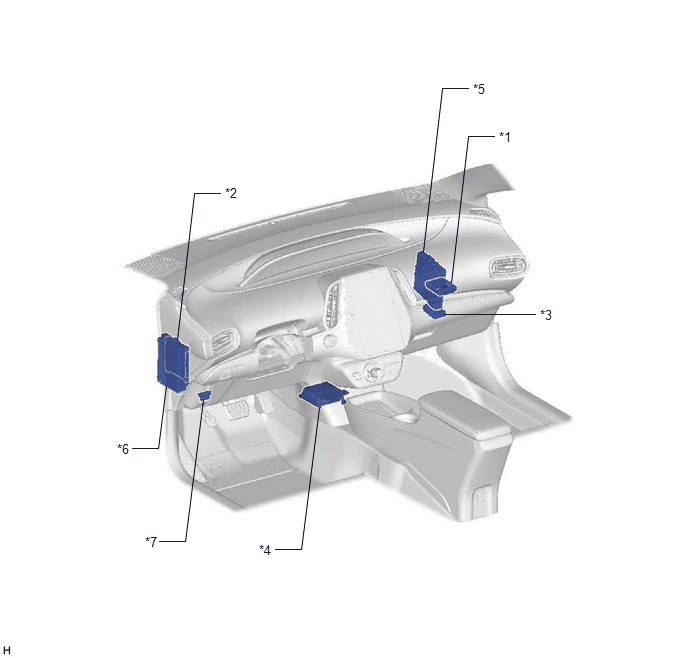

*1	DRIVING SUPPORT ECU ASSEMBLY	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)	*4	AIRBAG SENSOR ASSEMBLY - YAW RATE SENSOR
*5	HYBRID VEHICLE CONTROL ECU	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE
*7	DLC3	-	-
