System Diagram [05/2019 - 07/2020]

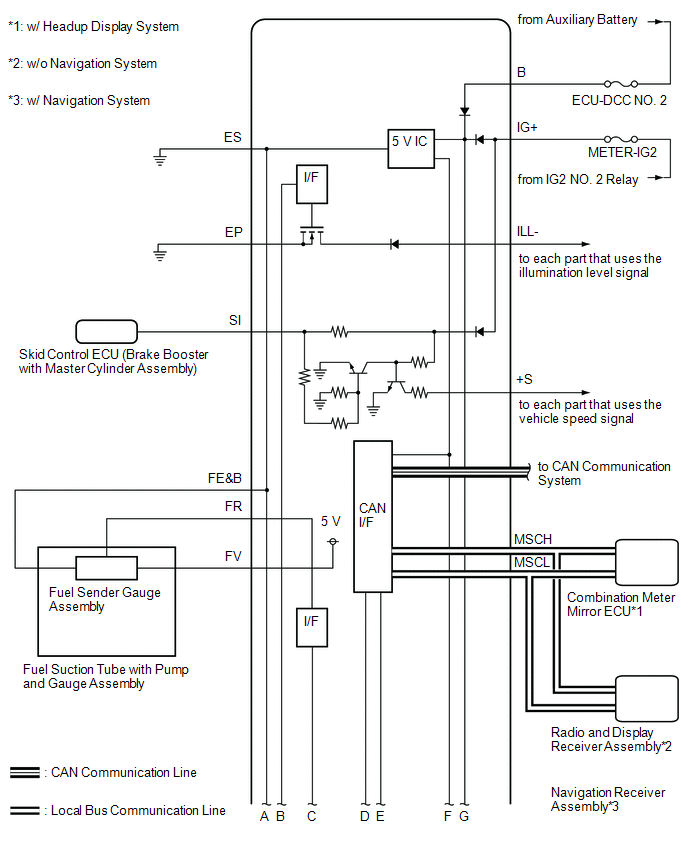

Fig 1: Meter / Gauge System Diagram (1 Of 3) (05/2019 - 07/2020)
GTY883542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

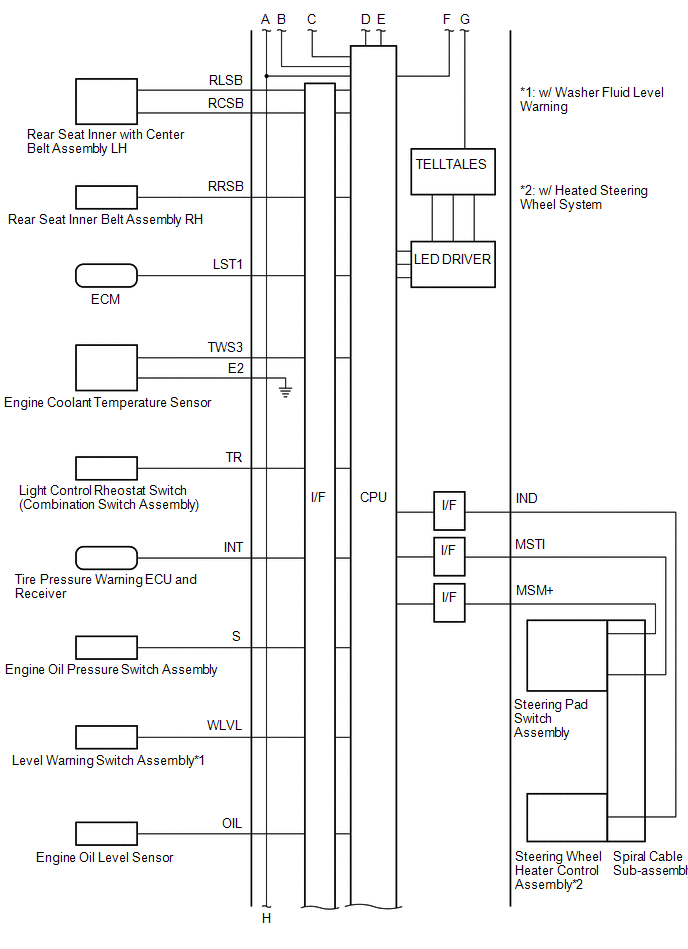

Fig 2: Meter / Gauge System Diagram (2 Of 3) (05/2019 - 07/2020)
GTY983501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

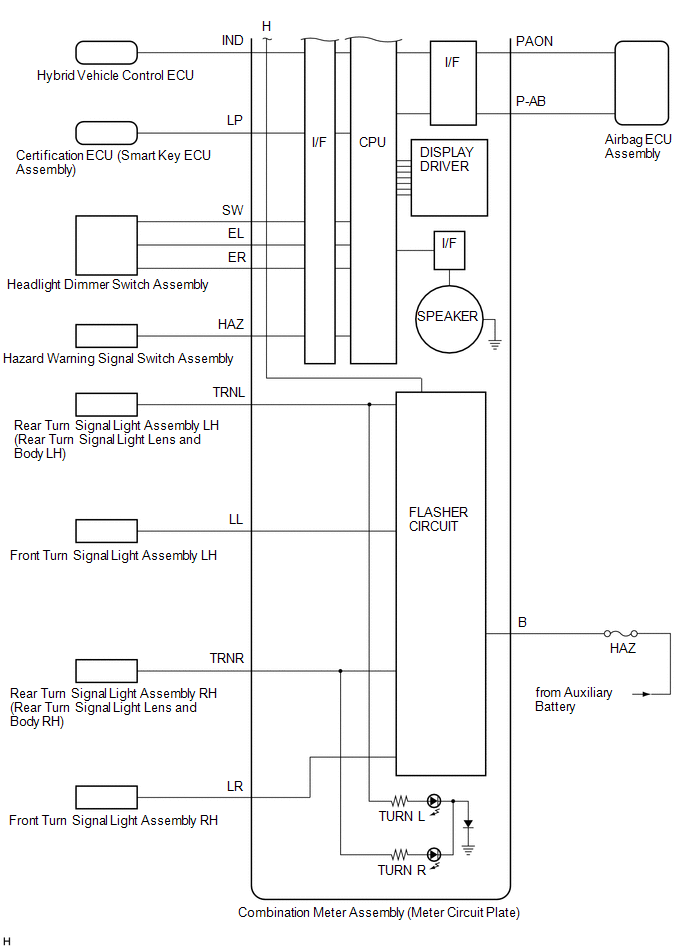

Fig 3: Meter / Gauge System Diagram (3 Of 3) (05/2019 - 07/2020)
GTY694090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
