DTC B242E: Open in IG Circuit [09/2016 - ]: Procedure
- CLEAR DTC
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / HL AutoLeveling / Trouble Codes.
- Clear the DTCs.
Body Electrical > HL AutoLeveling > Clear DTCs
Result
Proceed to NEXT
Result:
NEXT
See step 2
- CHECK FOR DTC
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / HL AutoLeveling / Trouble Codes.
- Check for DTCs.
Body Electrical > HL AutoLeveling > Trouble Codes
OK
DTC B242E is not output.
Result
Proceed to OK NG
Result:
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2016 - 05/2019] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [05/2019 - 07/2020] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [07/2020 - 06/2021] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [06/2021 - ]
Result:
NG
See step 3
- INSPECT NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH (IG TERMINAL VOLTAGE)

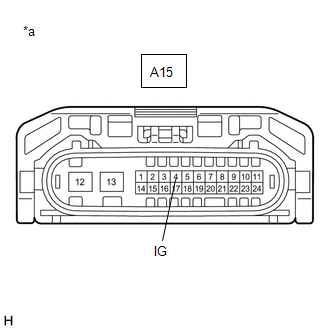

*a Component without harness connected
(No. 1 Headlight ECU Sub-assembly LH)- Disconnect the A15 No. 1 headlight ECU sub-assembly LH connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A15-4 (IG) - Body ground Power switch off Below 1 V A15-4 (IG) - Body ground Power switch on (IG) 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- CHECK HARNESS AND CONNECTOR (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A15-12 (GND) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
OK
REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to REMOVAL [09/2016 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Measure the resistance according to the value(s) in the table below.
