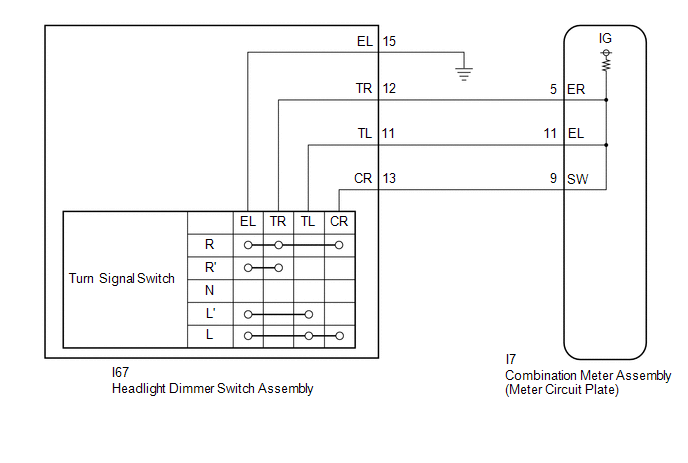

Turn Signal Switch Circuit [09/2016 - ]: Wiring Diagram

GTY722925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
