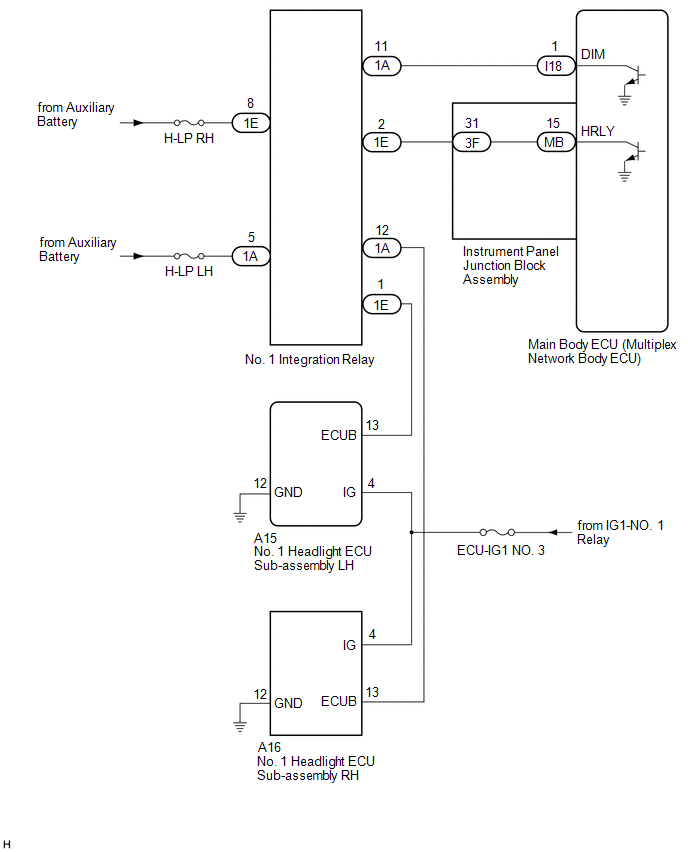

Power Source Circuit [07/2020 - ]: Wiring Diagram

GTY982126

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
