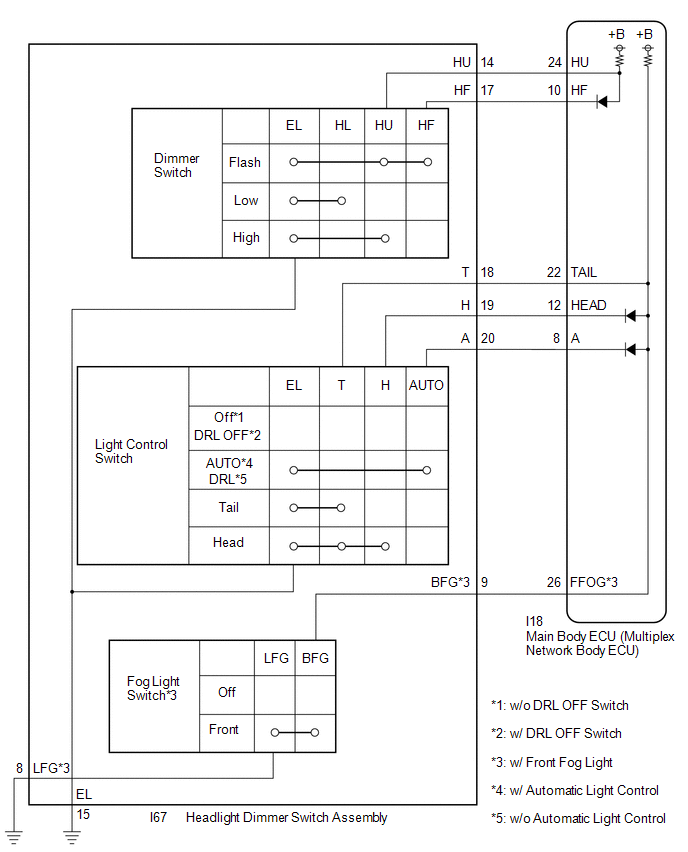

Headlight Dimmer Switch Circuit [09/2016 - 06/2021]: Wiring Diagram

GTY692892

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
