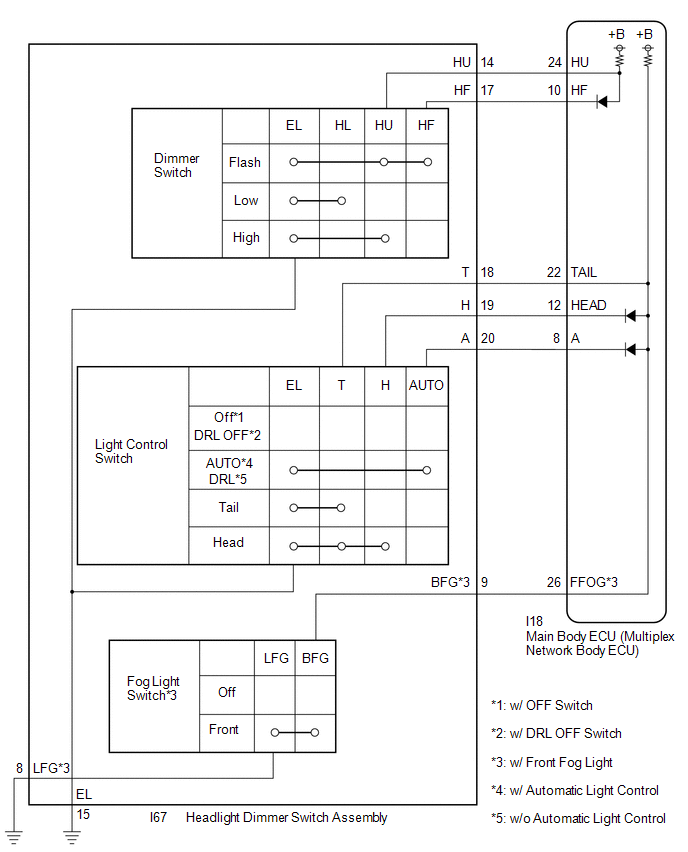

Headlight Dimmer Switch Circuit [06/2021 - ]: Wiring Diagram

GTY1024677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
