Back-up Light Circuit [09/2016 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
5. Check for DTCs.

   Powertrain > Hybrid Control > Trouble Codes

   Result

   Result	Proceed to
   Hybrid control system DTCs are not output	A
   Hybrid control system DTCs are output	B

Result:

B

GO TO HYBRID CONTROL SYSTEM. Refer to  DIAGNOSTIC TROUBLE CODE CHART [09/2016 - 01/2018]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [01/2018 - 12/2018]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [12/2018 - 05/2019]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [05/2019 - 07/2020]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [07/2020 - 06/2021]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [06/2021 - ]

Result:

A

See step  2

1. Disconnect the 3D instrument panel junction block assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3D-3 - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

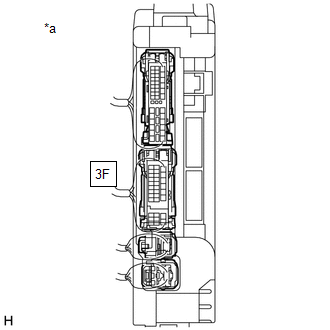

1. Disconnect the 3F instrument panel junction block assembly connector.
2. Disconnect the A41 hybrid vehicle control ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3F-19 - A41-20 (BL)	Always	Below 1 Ω
   3F-19 or A41-20 (BL) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the A41 hybrid vehicle control ECU connector.
2. Connect the 3D and 3F instrument panel junction block assembly connectors.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   3F-19 - Body ground	Power switch on (IG), reverse (R) not selected	Below 1 V
   3F-19 - Body ground	Power switch on (IG), reverse (R) selected	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [09/2016 - 07/2020]  , or refer to  REMOVAL [07/2020 - ]

Result:

OK

See step  5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

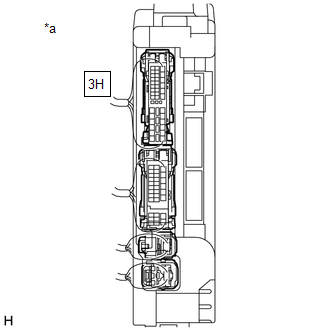

1. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   3H-10 - Body ground	Power switch on (IG), reverse (R) not selected	Below 1 V
   3H-10 - Body ground	Power switch on (IG), reverse (R) selected	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

NG

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [09/2016 - 07/2020]  , or refer to  REMOVAL [07/2020 - ]
