Installation [05/2019 - ]: Procedure

  1. INSTALL REAR SEAT CUSHION LOCK HOOK
    1. Engage the 2 claws to install a new rear seat cushion lock hook as shown in the illustration.

      HINT:

      Use the same procedure for the RH side and LH side.

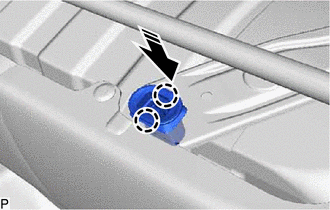

      GTY583543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL REAR SEAT CUSHION ASSEMBLY
    1. Place the rear seat cushion assembly in the cabin.
      NOTE:

      Be careful not to damage the vehicle body.

    2. Engage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration.

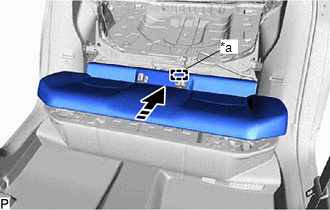

      GTY746769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Seat Cushion Frame Hook Rear Side
      Install in this Direction
      NOTE:

      Do not engage the rear seat cushion frame hooks on the front side of the rear seat cushion assembly. They will be engaged after connecting the rear center seat outer belt assembly.

  3. INSTALL REAR SEATBACK ASSEMBLY LH
    1. Place the rear seatback assembly LH in the cabin.
      NOTE:

      Be careful not to damage the vehicle body.

    2. Engage the 2 guides.
    3. Install the rear seatback assembly LH with the 2 bolts.

      Torque: 36.8 N*m (375 kgf*cm, 27 ft.*lbf)

    4. Engage the 2 fasteners.
    5. Return the rear seatback assembly LH to its original position.
  4. INSTALL REAR SEATBACK ASSEMBLY RH
    1. Place the rear seatback assembly RH in the cabin.
      NOTE:

      Be careful not to damage the vehicle body.

    2. Engage the 2 guides.
    3. Install the rear seatback assembly RH with the 2 bolts.

      Torque: 36.8 N*m (375 kgf*cm, 27 ft.*lbf)

    4. Engage the 2 fasteners.
    5. Return the rear seatback assembly RH to its original position.
  5. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
    1. Connect the rear center seat outer belt assembly as shown in the illustration.

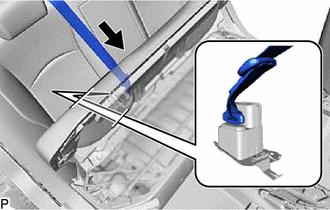

      GTY930933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly as shown in the illustration.
      NOTE:

      Confirm that the rear seat cushion assembly is securely installed.

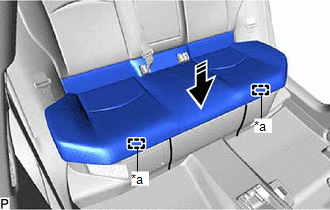

      GTY748744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Seat Cushion Frame Hook Front Side
      Install in this Direction
  6. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
    1. Install the rear seat center headrest assembly.
  7. INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
    1. Install the rear seat headrest assembly.
  8. INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)
    1. Install the rear seat headrest assembly.
