Removal [09/2016 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [09/2016 - ]

  2. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Disconnect the front door opening trim weatherstrip LH.
  3. REMOVE FRONT PILLAR GARNISH LH

    See step  13 See step  13 See step  15

  4. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Disengage the 2 clips and 3 claws as shown in the illustration.
      GTY547191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    2. Disengage the 2 guides to remove the No. 1 instrument panel speaker panel sub-assembly as shown in the illustration.
      GTY556969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 4

  6. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Disconnect the front door opening trim weatherstrip RH.
  7. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

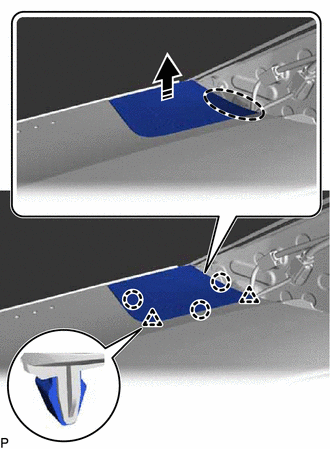

    1. Disengage the 2 clips and 3 claws as shown in the illustration.
      GTY739010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

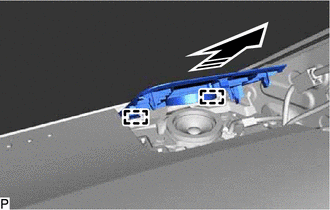

    2. Disengage the 2 guides to remove the No. 2 instrument panel speaker panel sub-assembly as shown in the illustration.
      GTY732925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  9. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE INSTRUMENT CLUSTER FINISH PANEL END (w/ Headup Display)
    1. Disengage the 5 claws as shown in the illustration.
      GTY548590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    2. Disengage the 2 guides to remove the instrument cluster finish panel end as shown in the illustration.
      GTY597279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  11. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 9 [09/2016 - 07/2020] , or refer to PROCEDURE - Step 9 [07/2020 - ]

  12. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY
    1. Disconnect each connector.
      GTY714587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Navigation Antenna - -
    2. Remove the upper instrument panel assembly as shown in the illustration.
      GTY735786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      NOTE:
      • Do not damage the upper instrument panel assembly.
      • Do not allow the wire harnesses to interfere with the surrounding parts.
